Janam XT3 Rugged Mobile Computer: Enhanced Productivity & Connectivity
Skip To The Main Content
product_section_head
Products

The Right Features. The Right Price.

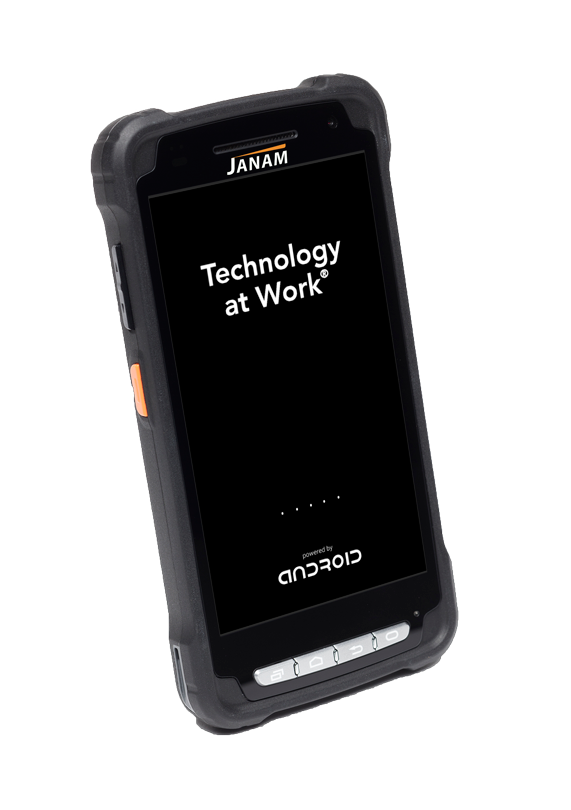

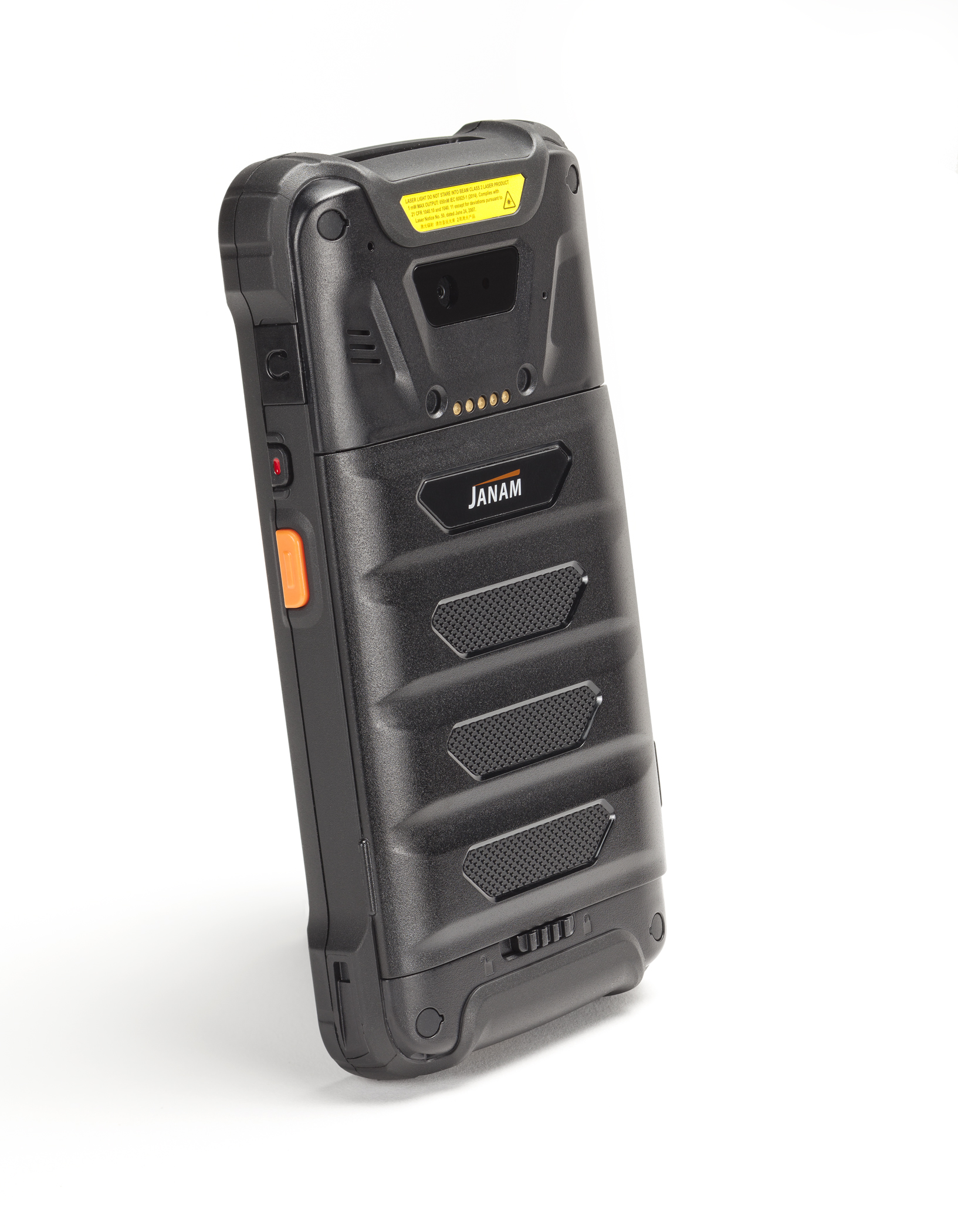

XT3

Pocket-Sized Powerhouse

As organizations in the enterprise look to improve return on investment, selecting a device with the right features and the right price is more important than ever.  XT3 is the next evolution of Janam’s best-selling rugged mobile computer. Offering the same industry-leading form factor and ultra-rugged design as Janam’s XT2+, XT3 delivers more features and greater performance to enable a fully connected and super-productive mobile workforce.

Featuring Android 9 or 11 with Google Mobile Services (GMS), Janam’s XT3 has earned Google’s prestigious Android Enterprise Recommended (AER) certification. Select versions of XT3 include specialized hardware and software that support Apple Wallet and Google Wallet to easily read all contactless passes, including event tickets, transit cards, loyalty cards and boarding passes. XT3 is the only rugged mobile computer that supports the most advanced NFC protocols for both Apple and Google in the same device.

Weighing less than 10 ounces and featuring smartphone styling, the XT3 is small, light and ergonomically designed for all day, everyday use in transportation, logistics, field service/field sales, retail, hospitality, public safety and other demanding work environments. IP67-rated and tested against MIL-STD-810G standards, the XT3 is incredibly rugged and built to survive repeated drops, extreme temperatures and dusty or wet environments. XT3 is also Class I, Div. 2, Groups A, B, C, D-compliant for safe operation in areas where flammable liquids or gases are handled, processed or used or explosive concentrations of vapors may exist.

Specifications

TECHNICAL



Operating System

Android 9 or 11 with Google Mobile Services (GMS); OS upgradeable; Android Enterprise Recommended

Processor

2.2GHz Qualcomm Snapdragon™ octa-core

Memory

4GB/64GB (3GB/32GB optional)

Expansion User-accessible microSD card slot, 1 micro SIM (WWAN model only) and 2 micro SAM slots

Power

2900mAh rechargeable and hot-swappable Li-ion battery (5800mAh optional)

PHYSICAL



Dimensions

6.1” L  x 3.2” W x .8” D / 156mm L  x 82mm W  x 21mm D



Weight

9.5oz / 272g including battery

Display

5 inch HD (1280x720), IPS, Daylight  readable (500 nits), Wide viewing angle,  Corning Gorilla Glass

Touch Panel

Multi-touch capacitive touch screen

ENVIRONMENTAL



Operating Temperature

-4º to 140º F / -20º to 60º

Storage Temperature

-13º to 158º F / -25º to 70º C

Humidity

Non-condensing, 95%

Drop

Multiple 5ft / 1.5m drops to concrete on all sides across a wide temperature range

Water & Dust

IP67

Electro Static Discharge (ESD)

+/- 15kV air; +/- 8kV contact

INTERFACE FEATURES



Audio

3.5mm headset jack; speaker; dual-microphone with noise cancellation  and push-to-talk (PTT) support

Alerts

Vibration; LED indicators

Connectors

USB-C; Pogo Pin industrial connector

LED Indicators

Dual-color

Motion Sensor Accelerometer; Light Sensor; Proximity Sensor; Gyroscope; Digital Compass
External Buttons 9 programmable keys

DATA CAPTURE



Imager

Honeywell N6703 1D/2D imager
Camera 13MP color rear-facing autofocus camera  with user-controllable LED flash and 8MP  front-facing camera
RFID/NFC Reads NFC Forum Tag 1 to 5, ISO14443  Type A, ISO14443 Type B, ISO15693,   MIFARE® 1k/4k/Plus/UltraLight/ DESFire,  Sony FeliCa on the 13.56 MHz range,   Optional support for Apple Value Added  Services (VAS) and Enhanced Contactless  Polling (ECP) and Google Smart Tap

WIRELESS
COMMUNICATION



WWAN (optional)

EDGE/GPRS/GSM: 900/1800/850/1900 WCDMA: B1/2/4/5/6/8/19  LTE FDD: B1/2/3/4/5/7/8/12/13/14/17/19/25/26/20/28  LTE TDD: B38/B39/B40/41


WLAN

802.11a/b/g/n/ac/d/h/i/k/r/v fast roaming,  2x2 MU-MIMO technology

Security IEEE 802.11n; WEP / WPA / WPA2 / WEP, RC4  Algorithm; TKIP, RC4 Algorith; AES, Rijndael  Algorithm; PEAP/MS-CHAPv2, EAP-TLS; EAP-  TTLS; PEAP-GTC; LEAP
WPAN Bluetooth 5.0 (BLE)
GPS GPS with support for GLONASS, Galileo and Beidou

ACCESSORIES (sold separately)

Single-Slot Ethernet Cradle Kit, Single-Slot USB/Charging Cradle Kit, Four-Slot Charging Cradle Kit

Extended Battery, Four-Slot Battery Charging Kit
Handstrap, Trigger Handle, Vehicle Cradle

SAFETY/REGULATORY



Safety

IEC 60950-1, EMC, RF, SAR, LED, Laser

Radio

FCC, IC, ICEC, CE, BIS, WPC

Environment

UL Listing (US and Canada) Class I Div 2, Groups A, B, C, D; RoHS; China RoHS

                                           Specifications Subject to Change.

Accessories

Cradle Kits

  • Single-Slot Ethernet Cradle Kit for XT3

    Single-Slot Ethernet Cradle Kit for XT3

    (CKT-T1-003E)
    Includes AC/DC charger.
  • Single-Slot USB Cradle Kit for XT3

    Single-Slot USB Cradle Kit for XT3

    (CKT-T1-003U)
    Includes AC/DC charger.
  • Four-Slot Charging Cradle Kit for XT3

    Four-Slot Charging Cradle Kit for XT3

    (CKT-T4-003C)
    Includes AC/DC charger.

Batteries & Chargers

  • Standard Battery for XT3

    Standard Battery for XT3

    ( BAT-T1-200)
    2900mAh 3.85V
  • Extended Battery for XT3

    Extended Battery for XT3

    ( BAT-T2-200)
    5800mAh 3.85V
  • Four-Slot Battery Charger for XT3

    Four-Slot Battery Charger for XT3

    (BK-T4-200)
    Includes AC/DC power adapter.

Expanded Performance

  • Nylon Holster with Rugged Clip for XT3

    Nylon Holster with Rugged Clip for XT3

    (HL-T-003F)
  • Trigger Handle for XT3

    Trigger Handle for XT3

    (TRG-T2-003)
  • Wearable Wrist-Mount Holster with Velcro Strap

    Wearable Wrist-Mount Holster with Velcro Strap

    (HL-T-008)
