| TECHNICAL |
| Operating System |
Palm OS 5.4.9 Garnet |
| Processor |
Freescale™ i.MX21 @266MHz |
| Memory |
32MB SDRAM, 64MB NAND, NAND flash backup of OS, applications and user data |
| Expansion |
User accessible microSD card slot |
| Power |
Swappable 3.7V 2400mAh rechargeable Li-ion main battery; rechargeable 20mAh Ni-MH backup battery |
| PHYSICAL |
| Dimensions |
1.30" H x 3.11" W x 5.75" L / 30.5mm H x 79mm W x 146mm L |
| Weight |
9.88oz / 280g with battery |
| Keypad |

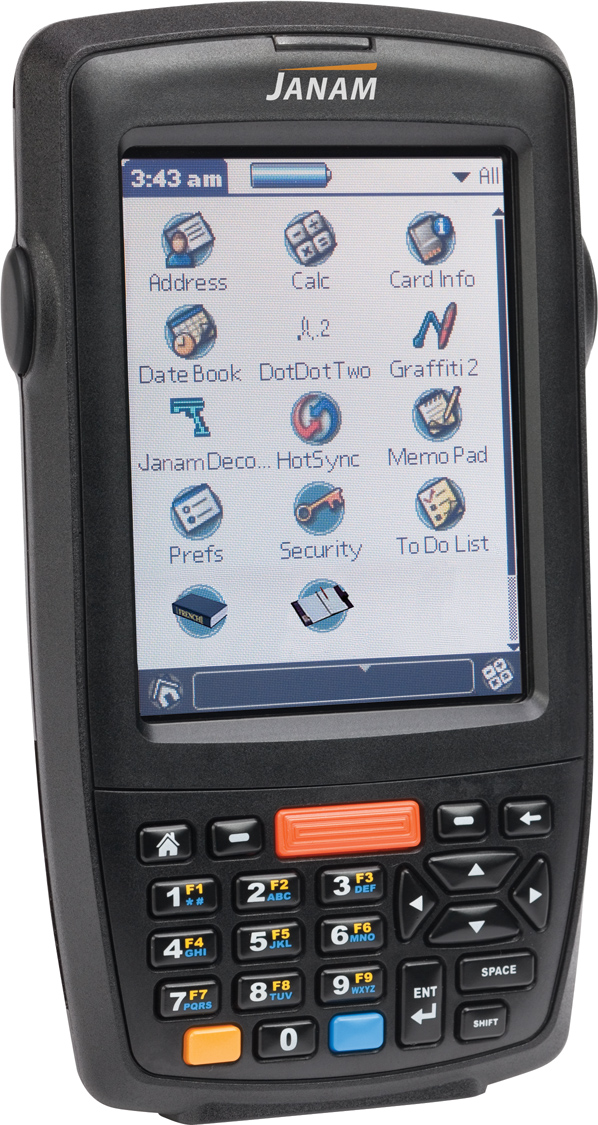

Backlit PDA keypad (with 4-way navigation) or backlit numeric keypad |
| Display |
2.17" W x 2.95" L / 55.0mm W x 75.0mm L; 262K colors TFT QVGA (240x320) |
| Touch Panel |
Analog resistance type; stylus input |
| ENVIRONMENTAL |
| Operating Temperature |
14° to 122° F / -10° to 50° C |
| Storage Temperature |
-13° to 158° F / -25° to 70° C |
| Humidity |
5% to 90% RH (no condensation) |
| Drop |
Multiple 4ft /1.2m drops to concrete on all sides across a wide temperature range |
| Water & Dust |
IP54 Category II |
| Vibration |
0.03 G²/Hz from 20Hz to 2kHz; 1 hour random wave per axis |
| Electro Static Discharge (ESD) |
+/- 15kVDC air; +/- 8kVDC contact |
| Sterilization |
76.9% to 81.4% concentration alcohol rub |
| Ambient Light |
450ft-candelas (artificial light); 8,000ft-candelas (sunlight) |
| INTERFACE FEATURES |
| Audio |
Speaker and Microphone |
| Alerts |
Vibration, LED indicators, audio beep |
| LED Indicators |
Tri-color |
| Scan Triggers |
Left, right, center buttons |
| DATA CAPTURE |
| Imager |
Adaptus® Imaging Technology; 752 x 480 pixel CMOS area imager |
| 1D Symbologies |
China Post, Codabar, Codablock F, Code 11, Code 16K, Code 32 Pharmaceutical (PARAF), Code 39, Code 49, Code 93 and 93i, Code 128, EAN-8, EAN-13, GS1-128, GS1 Databar (RSS-144, RSS Limited, RSS Expanded), Interleaved 2 of 5, ISBT 128, Matrix 2 of 5, Korea Post, MSI, Plessey Code, PosiCode, , Straight 2 of 5 IATA (two-bar start/stop), Straight 2 of 5 Industrial (three-bar start/stop), Telepen, Trioptic Code, UPC-A, UPC-A with Extended Coupon Code, UPC-E, UPC-E1 |
|
2D Symbologies
|
PDF417 (EAN-UCC Composite, MicroPDF417, PDF417, TCIF Linked Code 39, TLC39), 4-CB (4-State Customer Barcode), Australian Post, Aztec Code, Aztec Mesas, British Post, Canadian Post, Data Matrix, ID-tag (UPU 4-State), Japanese Post, KIX (Netherlands) Post, MaxiCode, OCR, Planet Code, Postnet, QR Code |
| DATA COMMUNICATION |
| IrDA |
Standard v1.2 |
| USB |
v1.1 client (up to 12Mbps) |
| WLAN |
IEEE 802.11b, 2.4GHz, WPA support |
| ACCESSORIES |
|
Single-Slot Cradle Kit, RFID Reader, Stylus 5-Pack, Four-Slot Cradle Kit, Cable Cup, Stylus Tether, Modem Cradle Kit, Vehicle Charger, Nylon Holster, Extended Capacity Battery, Syncing/Charging Cables, Adjustable Handstrap, Magnetic Stripe Reader, Battery Charger, Operating Case |
| SAFETY/REGULATORY |
| Safety |
UL60950-1, CSA C22.2 No. 60950-1-03, EN60950-1:2001+A11, GS, NOM |
| EMI |
FCC Part 15 Subpart B, EN55022:1998+A1: 2000+A2:2003, EN55024:1998+A1:2000+A2:2003, ICES-003 Issue 4, AS/NZS CISPR 22:2004 |
| RF |
FCC Part 15 Subpart C and Supart B, EN300 328 v1.6.1 (2004-11), EN301 489-1 v1.6.1 (2005-09), EN301 489-17 v1.2.1 (2002-08), RSS 210 Issue 6, COFETEL |
| Hazardous Locations |
UL Listing (US and Canada) Class I Div 2, Groups A, B, C, D |
| Specifications Subject to Change. |
