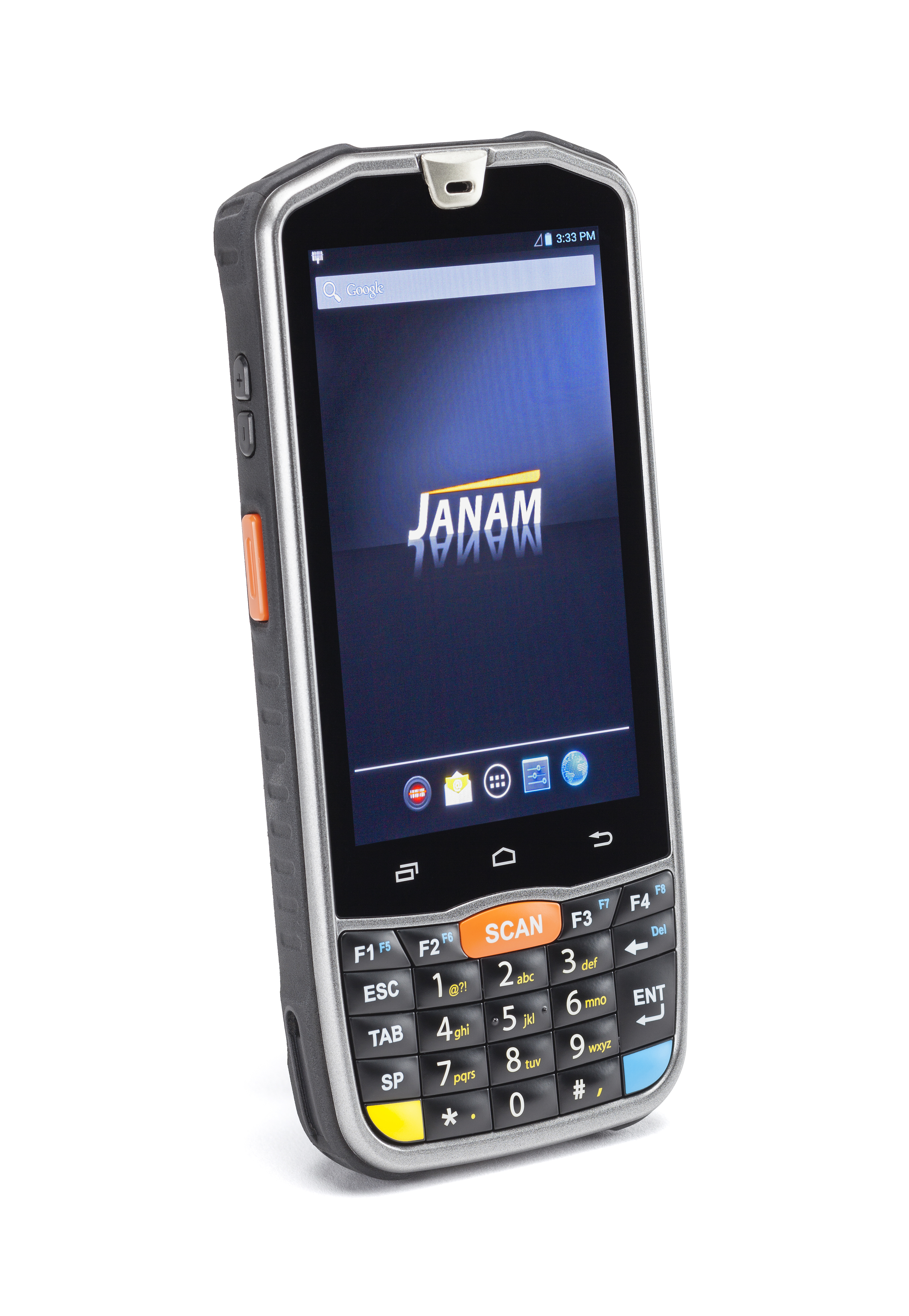

XM75

Pocketable. Powerful. Tough.

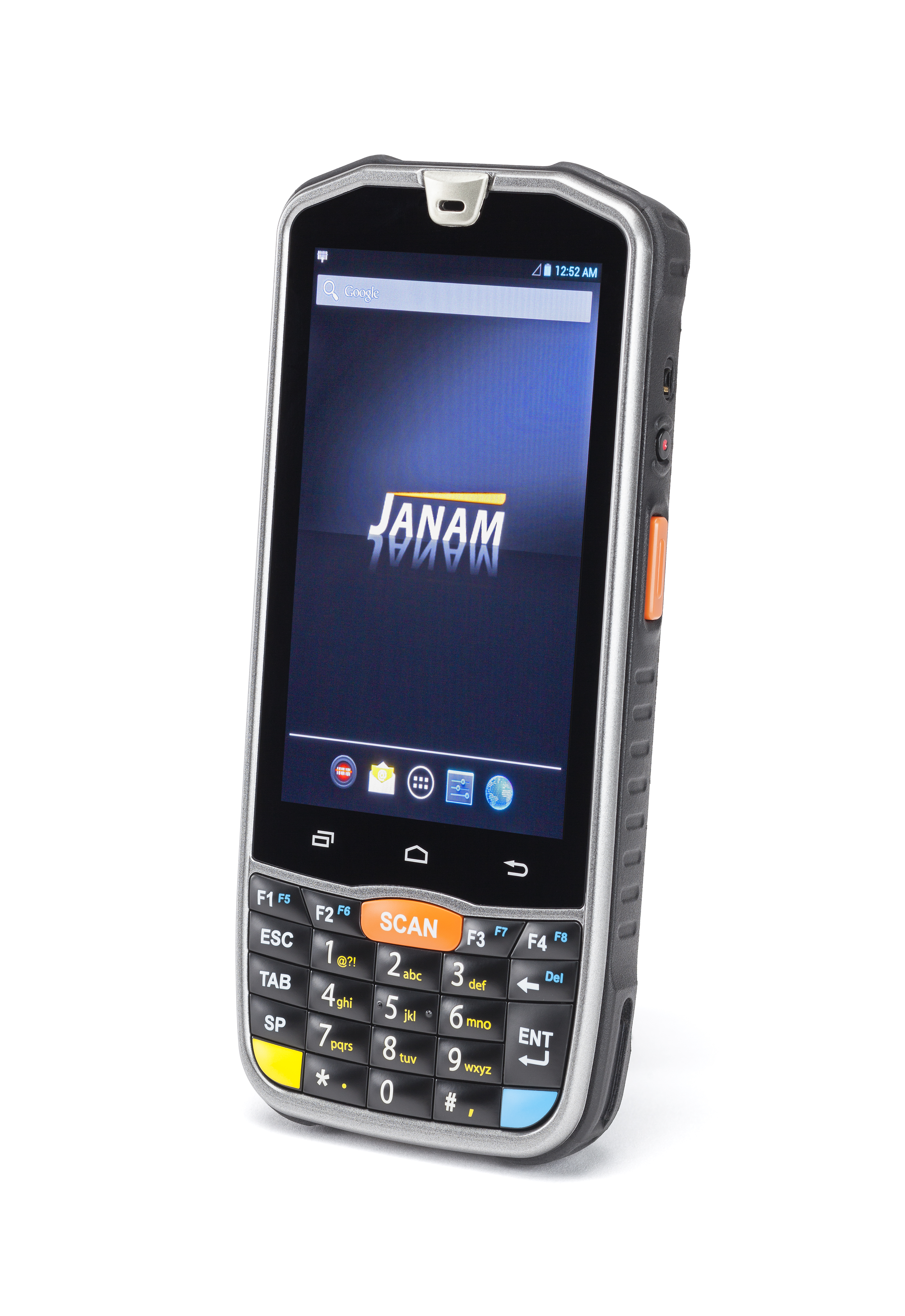

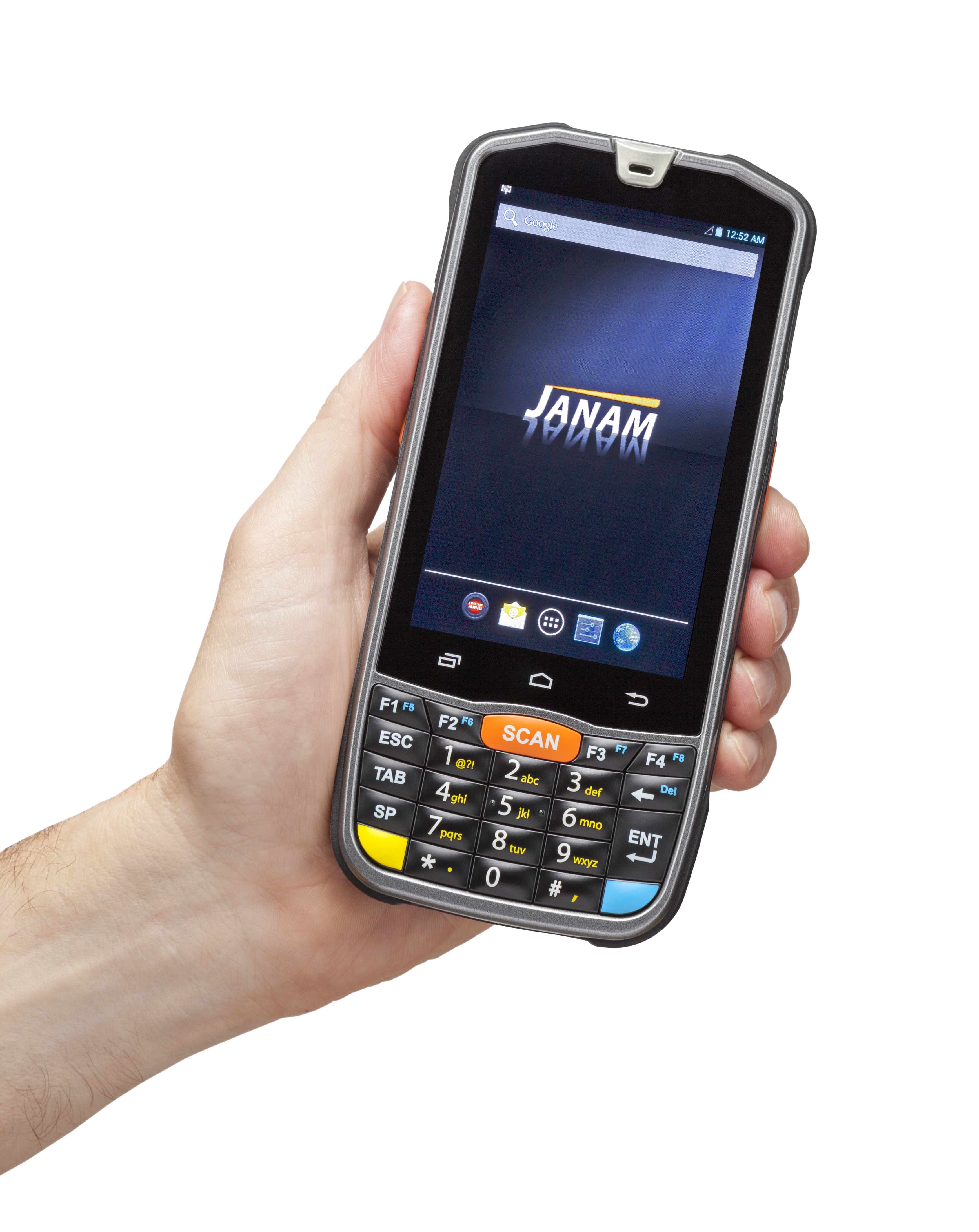

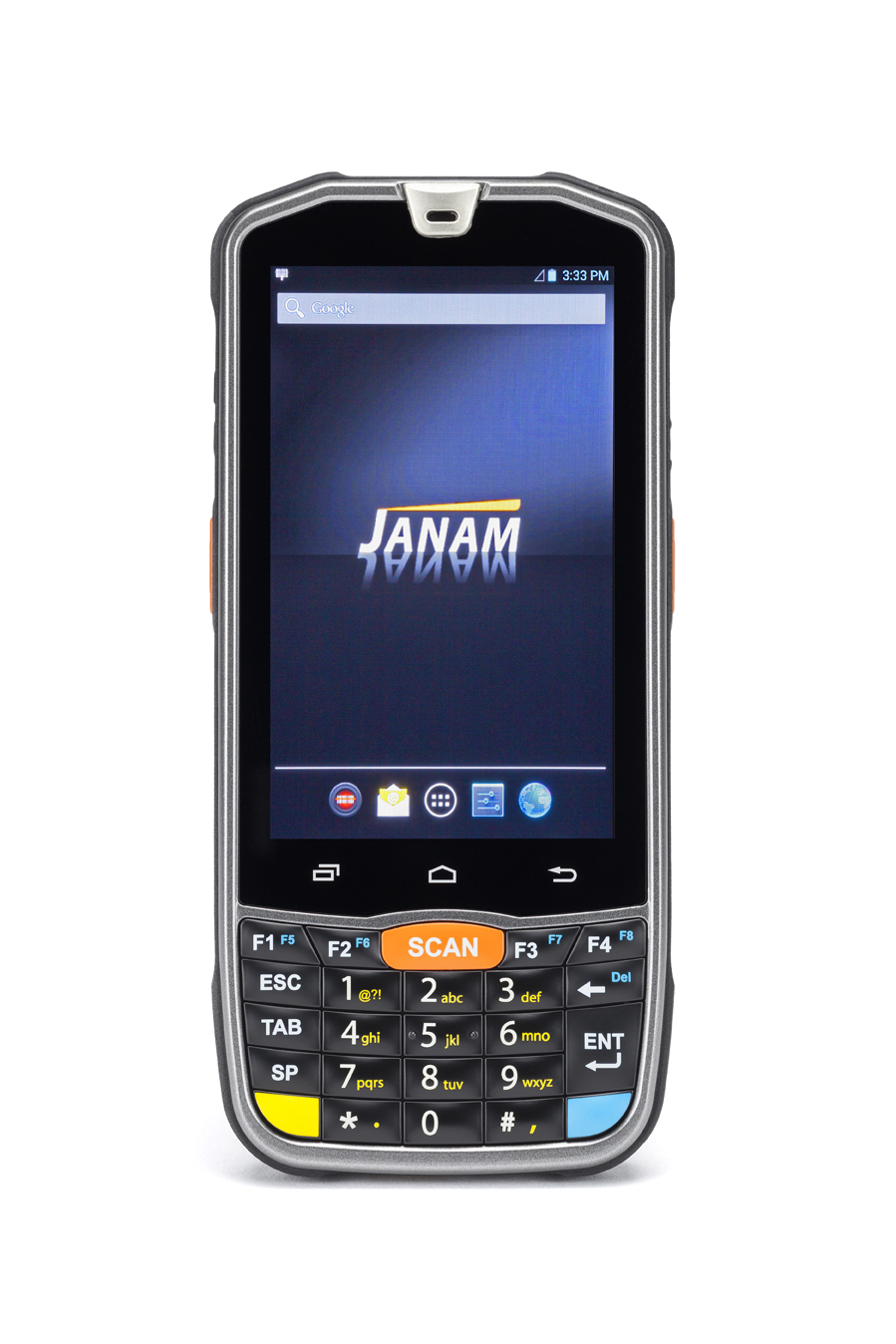

Janam’s XM75 rugged mobile computer makes it easy to capture business-critical information accurately and efficiently. As one of the only devices specially designed for input-intensive applications, the XM75’s compact form factor combined with larger keypad design delivers the ideal solution for organizations that want an easy-to-use keypad and large touch screen in the same device.

Pocketable and powerful, the XM75 supports the enterprise-ready Android operating system with Google Mobile Services and meets all the requirements of the most demanding environments, including transportation, logistics, route accounting, direct store delivery and field service.

Weighing only 10.5 ounces, the XM75 is one of the lightest yet most rugged devices in its class and is packed with advanced features to boost productivity, streamline operations and improve the customer experience. Offering 4G LTE, Wi-Fi, GPS and Bluetooth, the XM75 provides lightning fast and reliable access to voice and data applications inside the enterprise and out in the field.

The XM75 is sealed to IP67 standard against dust and immersion in up to 3 feet of water. It can withstand multiple 5’/1.5m drops to concrete per MIL-STD 810G across a wide temperature range. A standard 2-year warranty provides customers with both peace of mind and the level of service they require, at no additional cost, with optional Comprehensive Service plans available to those that want to further extend their mobile computing investment.



Specifications

TECHNICAL



Operating System

Android 6

Processor

1.2 GHz Qualcomm Snapdragon™ 410 quad-core

Memory

2GB/16GB

Expansion

User-accessible microSD card slot with SD and SDHC support

Power

4100mAh rechargeable Li-ion battery

PHYSICAL



Dimensions

3.02” x 6.53” x 1.15” / 76.83mm x 166.01mm x 29.27mm

Weight

10.5oz / 300g including battery

Display

4.3” WVGA (480 x 800 pixel) with Corning Gorilla Glass 3

Touch Panel

Capacitive touch screen

ENVIRONMENTAL



Operating Temperature

-4º to 140º F / -20º to 60º C

Storage Temperature

-13º to 158º F / -25º to 70º C

Humidity

Non-condensing, 95%

Drop

Multiple 5ft / 1.5m drops to concrete across a wide temperature range per MIL-STD 810G

Water & Dust

IP67

Electro Static Discharge (ESD)

+/- 15kV air; +/- 8kV contact

INTERFACE FEATURES



Audio

3.5mm headset jack; speaker; 2 microphones

Alerts

Vibration; LED indicators

Connectors

MicroUSB supports USB 2.0 High-Speed

LED Indicators

Dual-color LED indicators

 Motion Sensor  Gyroscope; Accelerometer; Light Sensor; Proximity Sensor; Digital Compass

External Buttons

Numeric keypad (24 keys) with backlight; 2 external buttons

DATA CAPTURE



Imager

Honeywell N6603 2D Imager

Camera 13MP color rear-facing autofocus camera with user-controllable LED flash
RFID/NFC Reads ISO14443 Type A; ISO14443 Type B & ISO15693; MIFARE UltraLight; MIFARE UltraLight C; MIFARE 1k/4k/Plus; MIFARE DESFire;MIFARE DESFire EV1; NFC in the 13.56MHz range


NETWORK COMMUNICATION



 USB  MicroUSB port supports USB 2.0 High-Speed

WWAN

EDGE/GPRS/GSM: 900/1800
WCDMA: B1/2/5/6/8/19
LTE FDD: B1/2/3/5/7/8/17/20
LTE TDD: B40/41

WLAN

802.11a/b/g/n/d/h/i/k/r/v

Security

IEEE802.11; WEP; WPA/WPA2; PEAP/MSCHAPv2; EAP-TLS

WPAN

Bluetooth v4.1

GPS  Qualcomm GPS supports GLONASS

ACCESSORIES

Single-slot cradle kit (Ethernet; Charging)



Four-slot charging cradle kit



Power adapter

Spare battery
Four-slot battery charging kit

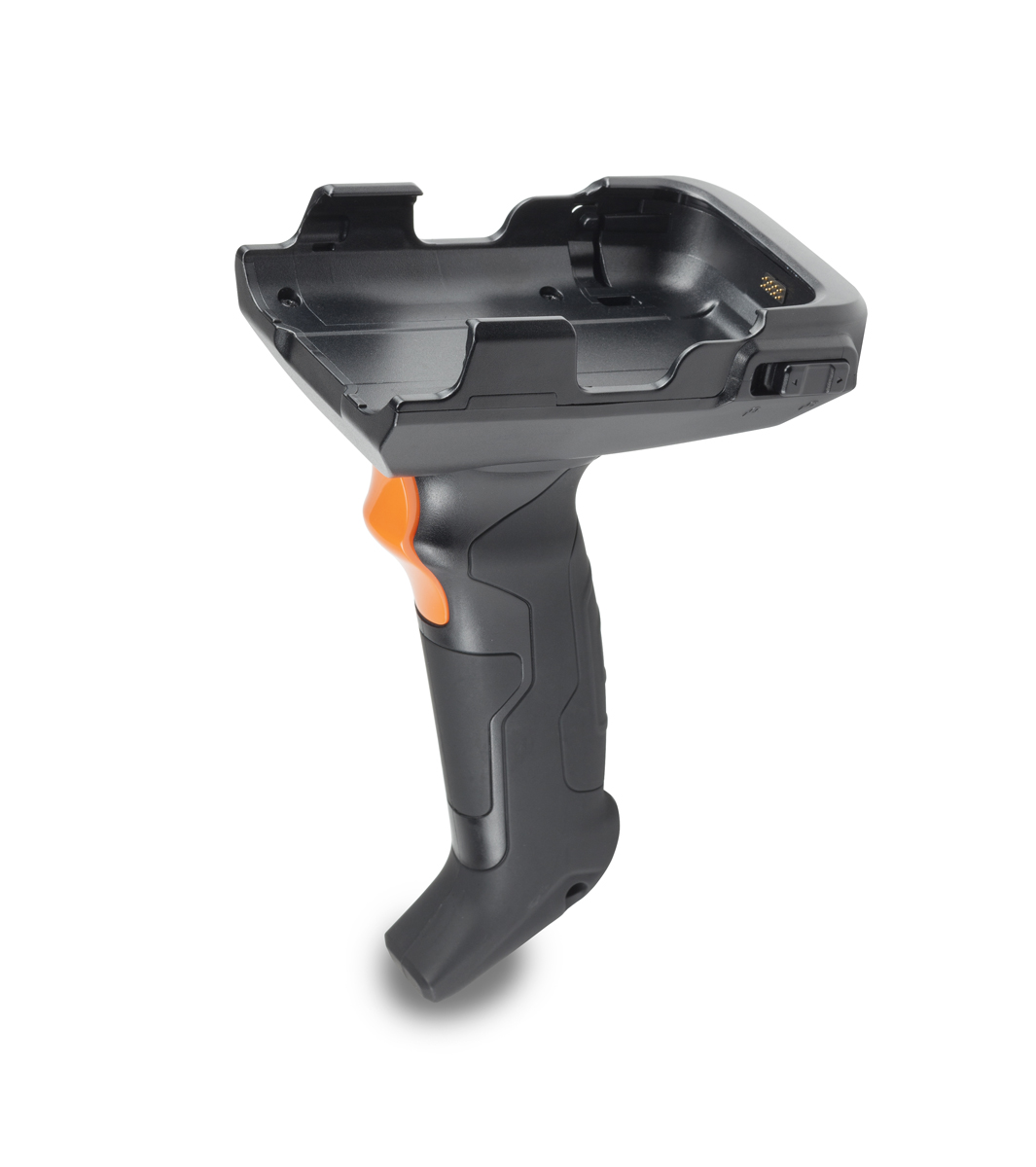

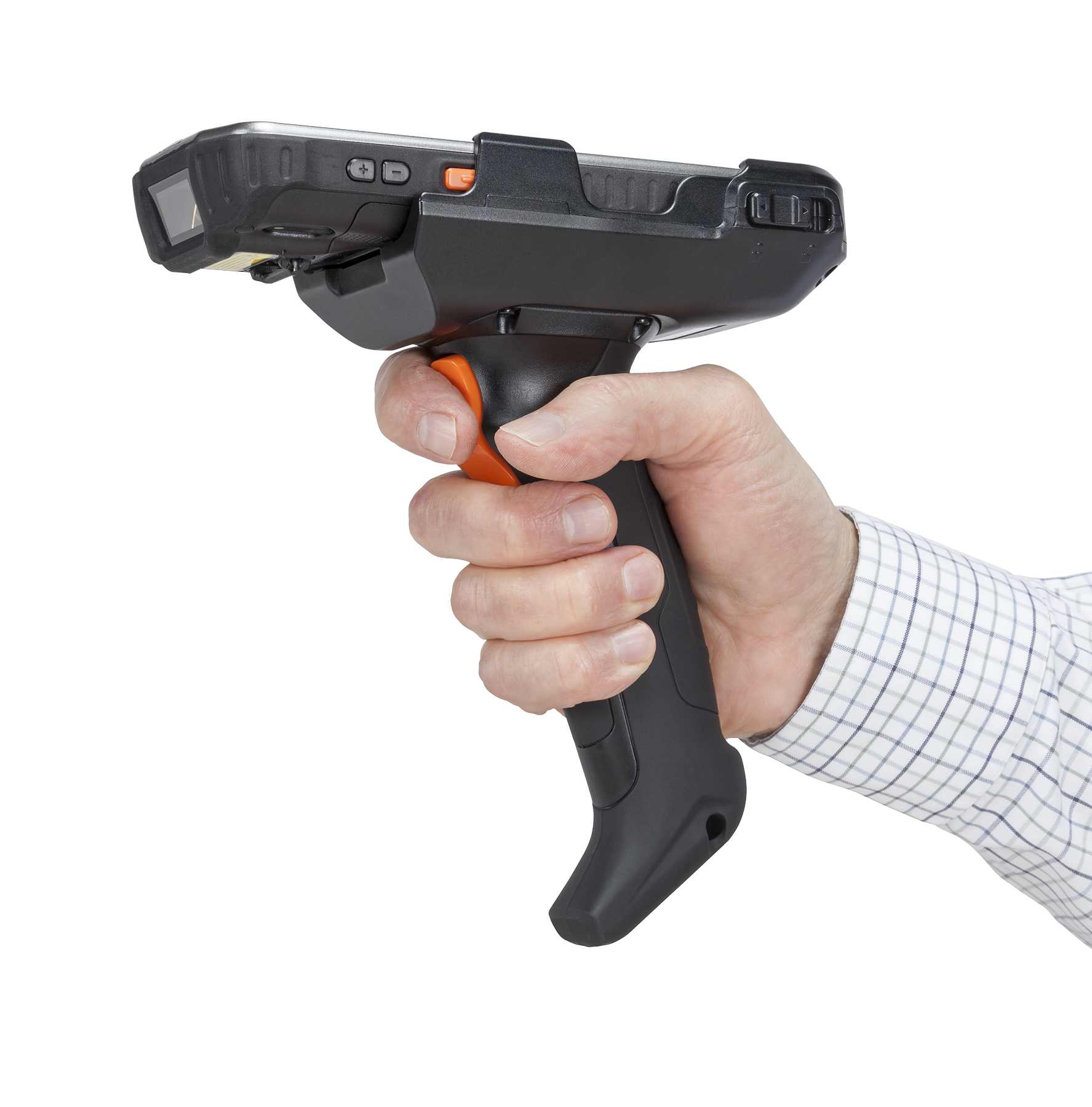

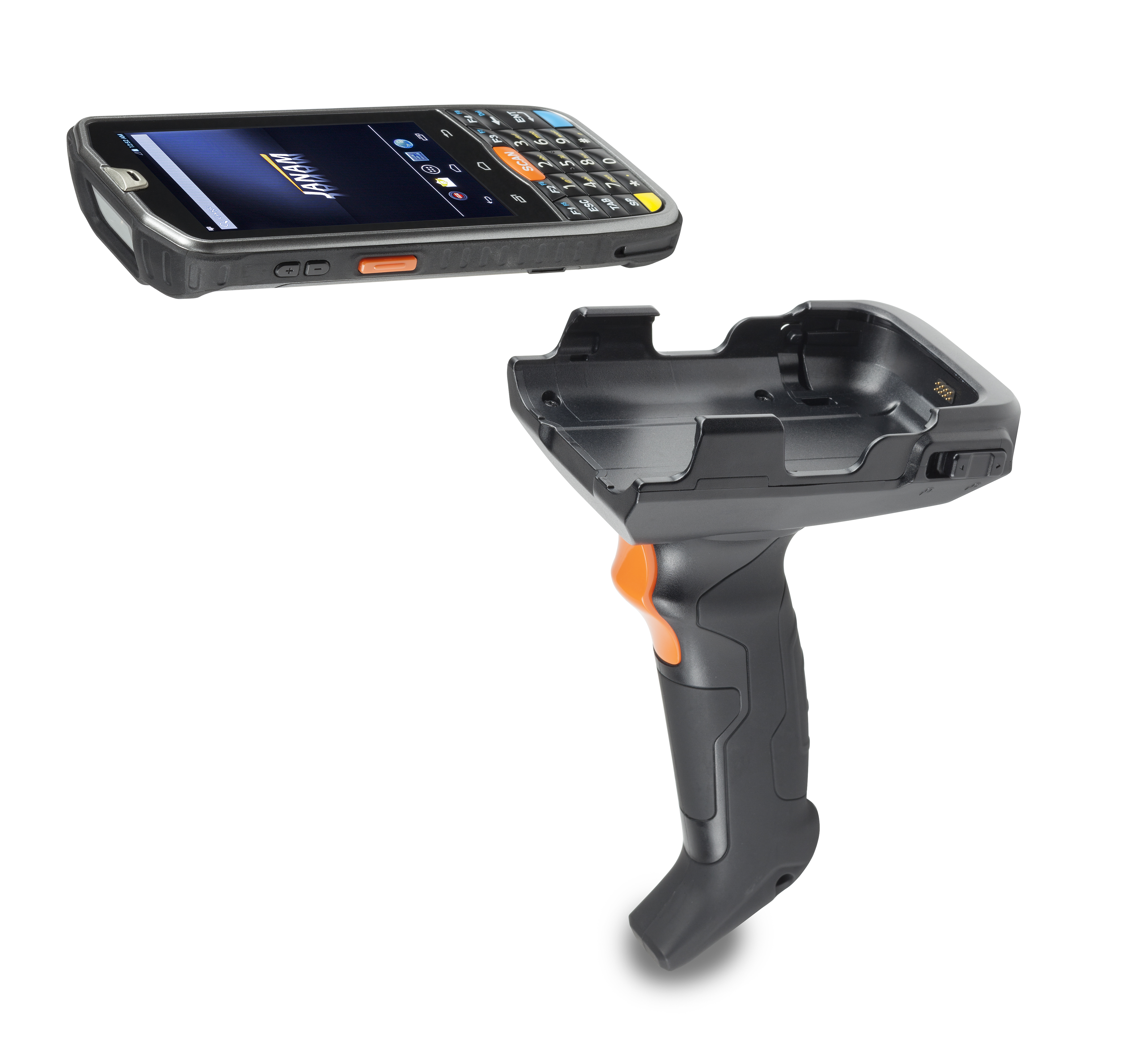

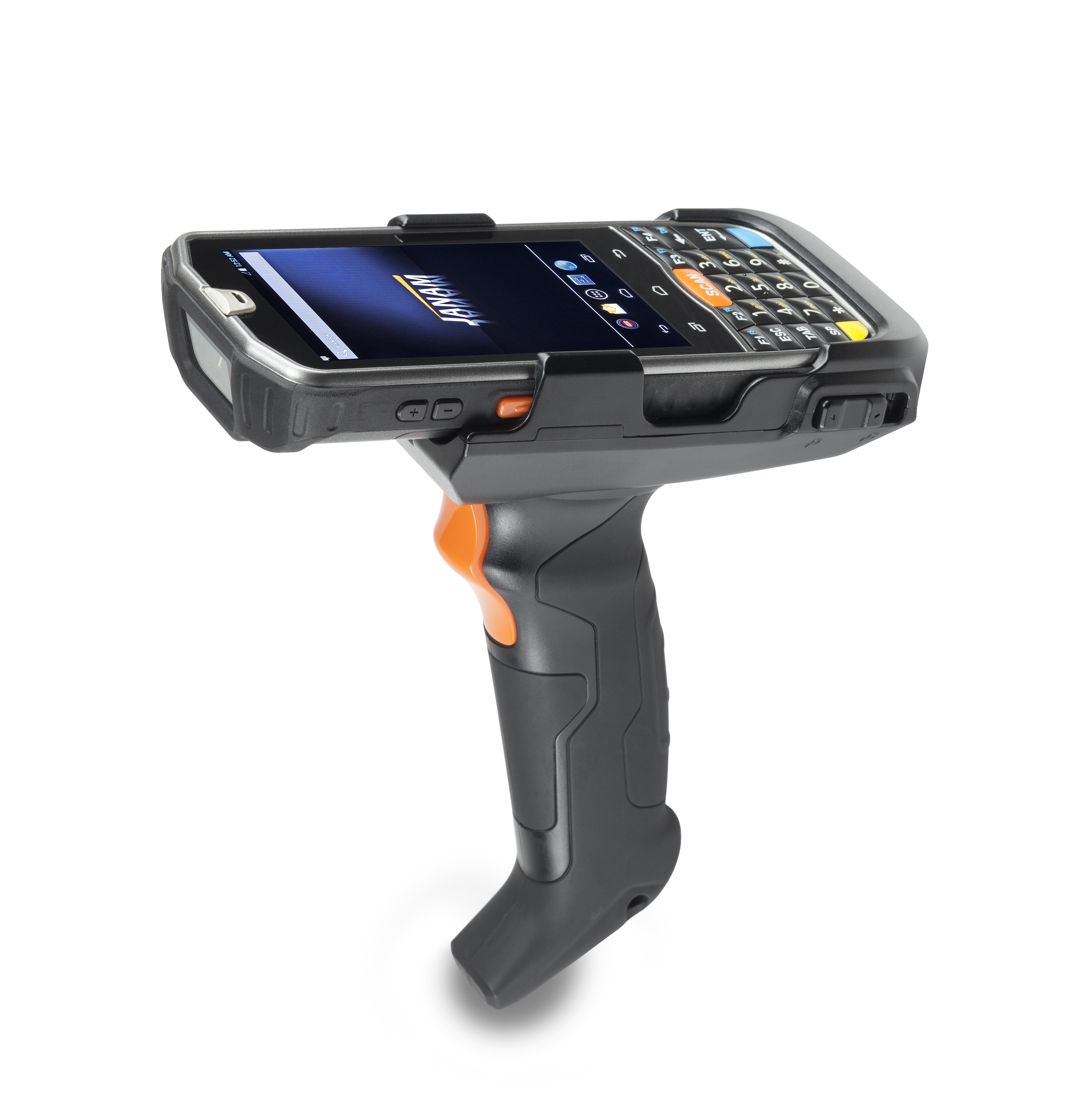

  Trigger handle
   Nylon holster; Operating case; Handstrap

SAFETY/REGULATORY



Safety

IEC 60950; EMC; RF; SAR; LED; Laser

Radio

FCC; IC; GCF; CE

Environment

RoHS and WEEE compliant

 Hazardous Locations  UL Listing (US and Canada) Class I Div 2, Groups A, B, C, D

                                           Specifications Subject to Change.
