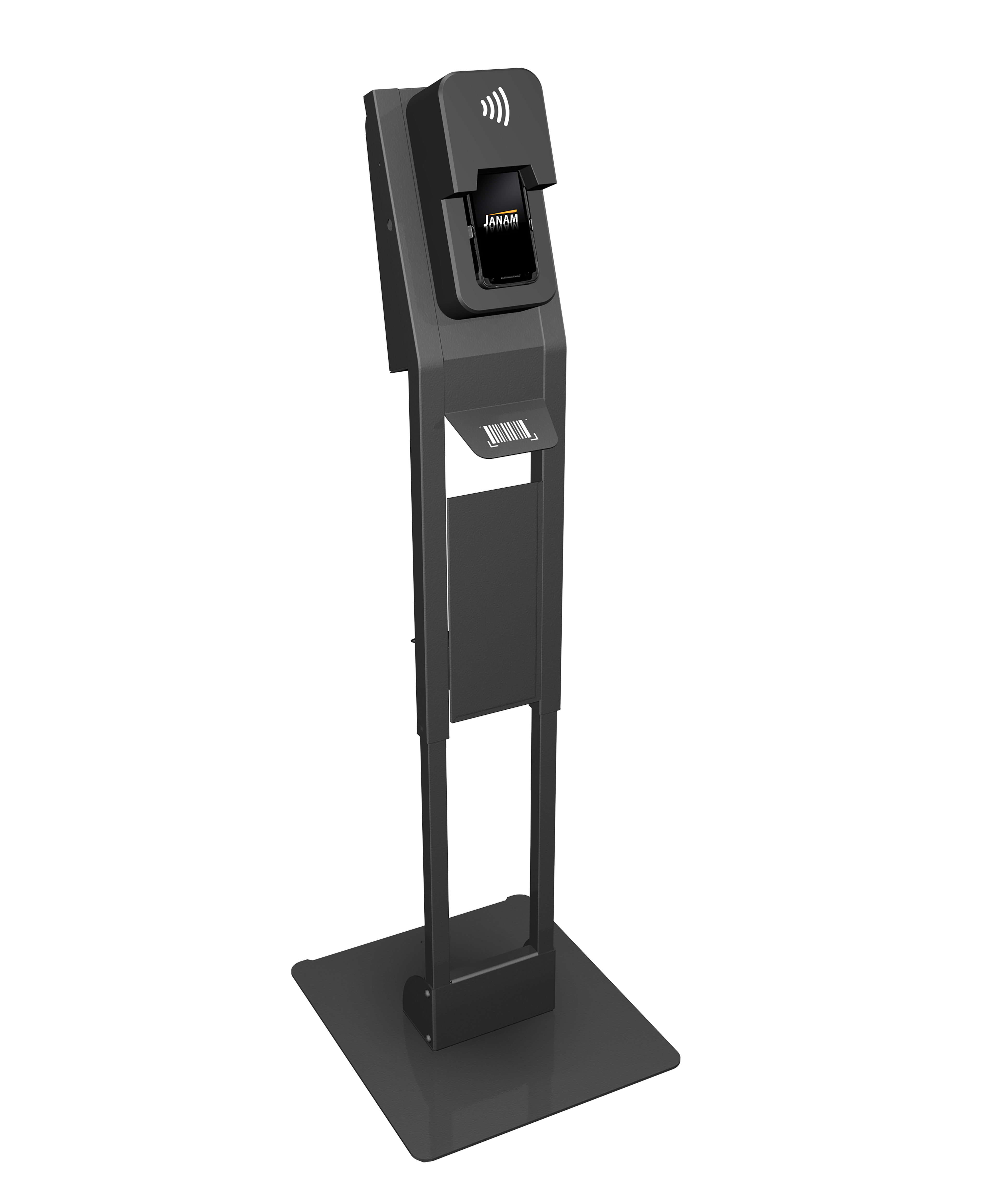

GTX

Next-Gen Smart Access Control

GTX is Janam’s next-generation mobile entry pedestal. It combines the most advanced barcode scanning and NFC reading capabilities with an ultra-flexible and lightweight design, setting a new standard for rapid, reliable and secure barrier-free entry for sports and live entertainment venues.

Janam’s new GTX builds on the success of Janam’s industry leading GT1 mobile entry pedestal to improve ingress and elevate the patron experience with the most versatile and affordable solution for access control. Like its predecessor, GTX is powered by a Janam mobile computer (ticket scanner) that is easily inserted into the top portion of the unit. With GTX, venues can affordably deploy the same proven access system that is already in use, in either handheld or mobile pedestal format, depending on their specific needs.

New features include:

  • Strategic relocation of its power source to the top of the unit, simplifying removal, replacement and charging, while also enabling quick and easy monitoring of battery life by venue staff.
  • High-performance, intelligent battery designed specifically to align with the operational requirements of modern venues.
  • Interchangeable display placard to maximize advertising potential without compromising ingress efficiency.
  • New and improved wheel-mounting system.
  • affordable color customization for venues seeking to match GTX’s appearance with any team or event theme.
  • Meets American Disabilities Act (ADA) accessibility standards.
Specifications

PHYSICAL



Dimensions

Height: 51” / 1295mm (adjustable to 42”
to meet ADA compliance)
Base: 16” x 18” / 406mm x 457mm
Placard: 4.75” x 11.625” / 120.65mm / 295.529mm


Weight

36lbs / 16.3kgs (unboxed)
44lbs / 19.9kgs (boxed)

Battery

Li-polymer
Rated capacity: 10.4mAh
Charging time: Approximately 6 hours
I/O I/O on the guardian unit includes power input
jacks for wall adapter and battery, ethernet port,
and USB port
Operating Temperature -4º to 140ºF / -20°C to 60°C
Storage Temperature -13º to 158º F / -25º to 70º C
Water & Dust IP52


Resources

Product files and documents


GTX Datasheet PDF file, 982.31 KB
