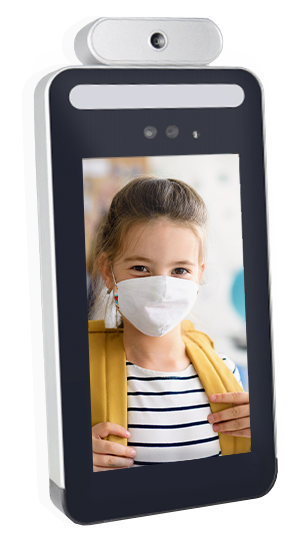

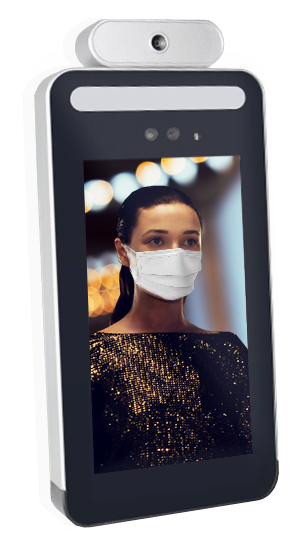

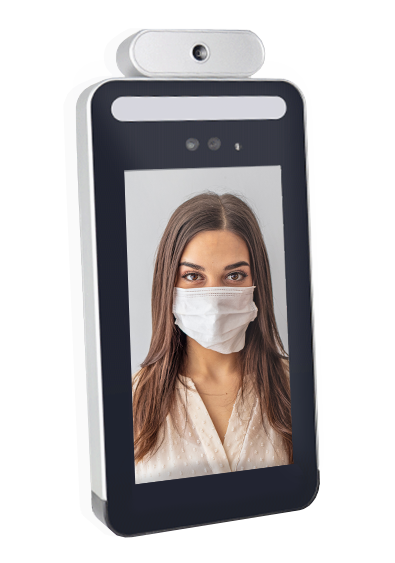

GT2

Most Affordable Temperature Sensing Kiosk

Janam's Android-powered GT2 is an easy-to-deploy temperature sensing kiosk that enables businesses to protect the health and safety of employees and guests by identifying anyone with a fever and/or without a face mask prior to that person gaining access to a facility. Priced thousands of dollars less than other solutions of its kind, the super affordable GT2 uses advanced infrared thermal imaging and mask detection technology to deliver a contactless access control solution that complies with guidelines proposed by the Centers for Disease Control and Prevention (CDC).

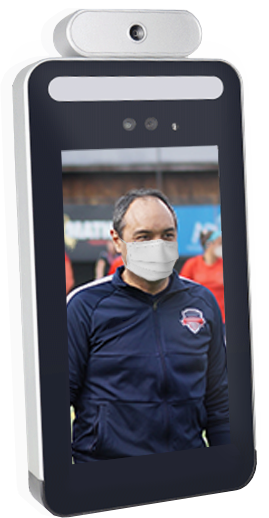

GT2 is designed for sports and live entertainment venues, airports, hospitals, retail establishments, restaurants, office buildings, hotels, schools and virtually any organization that wants to check the temperature and confirm the identity of individuals entering their facilities. As a first line of defense against COVID-19 and other contagions, GT2 screens an individuals temperature in less than one second, from up to 20 inches away, and is more hygienic than thermometers that require physical contact.

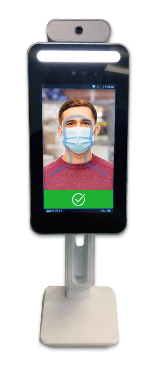

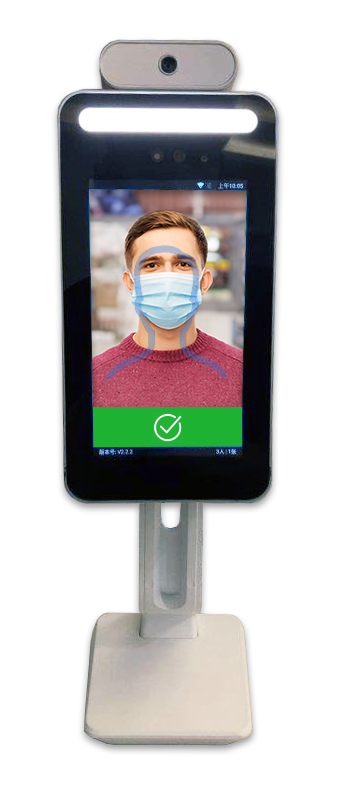

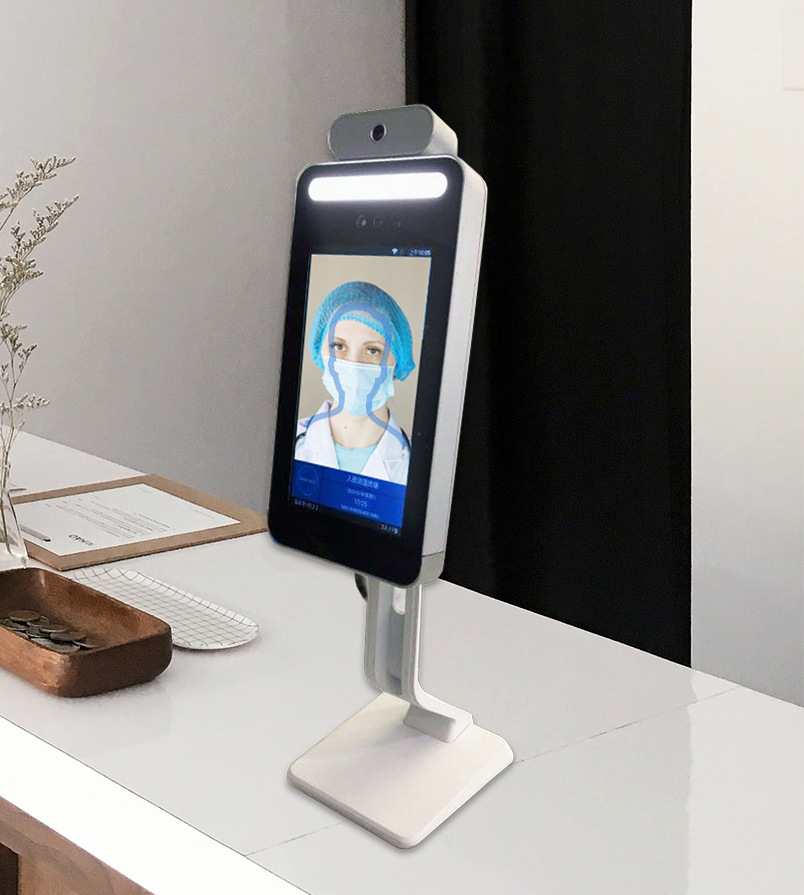

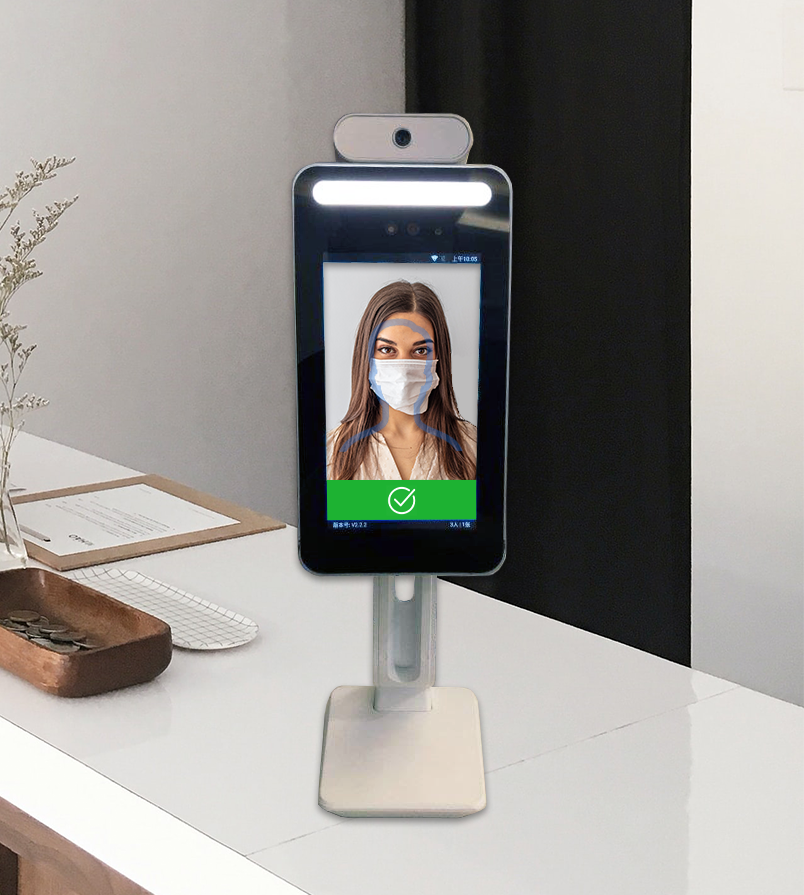

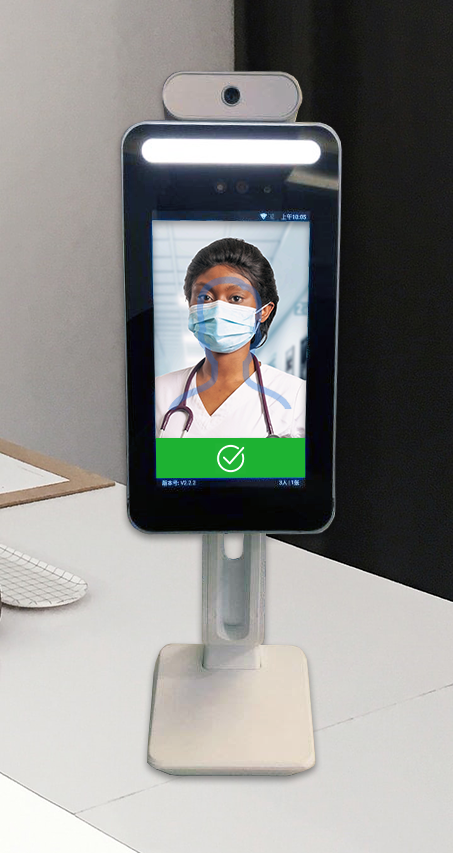

Janam's GT2 is available in pedestal, countertop and wall-mounted formats and can easily integrate with security gates, turnstiles and door access control systems to speed self-credentialing. Equipped with a brilliant 7-inch display, GT2 offers Wi-Fi, Bluetooth and 4G LTE (for data) connectivity for sharing information in real-time

Specifications
TECHNICAL
Operating System: Android 7
Processor: 1.4GHz Qualcomm Snapdragon™ 430 octa-core
Memory:  2GB / 16GB
Expansion: Up to 128GB with SD card
Power: DC 12V / 2A (external power supply)

PHYSICAL
Dimensions: 10” L x 4.76” W x .98” D / 254mm L x 121mm W x 25mm D (base unit only)
Weight: 33oz / 890g (base unit only)
Display: 7.4” WSVGA (1024 x 600)

ENVIRONMENTAL
Operating Temperature: 59º to 86º F / 15º to 30º C
Storage Temperature: -4º to 140º F / -20º to 60º C
Humidity: Non-condensing, 90%

INTERFACE FEATURES
Audio: 1.5W / 1 speaker
Alerts: Audio

DATA CAPTURE
Camera: 2MP wide-angle, LED & IR Dual Photo Flood Light
Temperature
   Detection Distance: 1.5ft / .5m
   Accuracy: ± 0.9°F
   Measurement Range: 95°F ~!107.6°F / 35°C ~!42°C
   Speed: 100ms ~ 500ms
   Abnormal Temp Alert: >99°F / 37°C
   Thermal Field of View: 90°
Facial Recognition
  Supports simultaneous detection / tracking
  Face Library: Up to 30,000
  Accuracy: " 99%
  Distance: 6ft / 2m
  Speed: 1 second per person

NETWORK COMMUNICATION
Network Module: Ethernet
WLAN: 802.11b/g/n
WPAN: Bluetooth 4.0
USB: USB 2.0 TYPE A
Serial: 2 RS232 serial ports
Relay: 1 relay output
Wiegand: 1 extension interface (read & write)
Resources

Product files and documents


GT2 Calibration Guide PDF file, 273.04 KB
GT2 QSG PDF file, 519.76 KB
GT2 Temperature Sensing Kiosk Datasheet PDF file, 467.18 KB
