GT1 Self-Credentialing Kiosk

Safe, Secure and Affordable Self-Credentialing Kiosk

Whether attending an event, boarding an airplane, picking up a prescription, bringing a child to the emergency room, purchasing a bottle of wine, or going into the office, the speed of verifying credentials is directly related to the quality of the experience. Janam’s GT1 self-credentialing kiosk is an easy-to-use mobile wallet reader designed to help organizations in healthcare, hospitality, retail, ticketing and transportation industries safely and swiftly verify information from their patrons, customers, staff and guests.

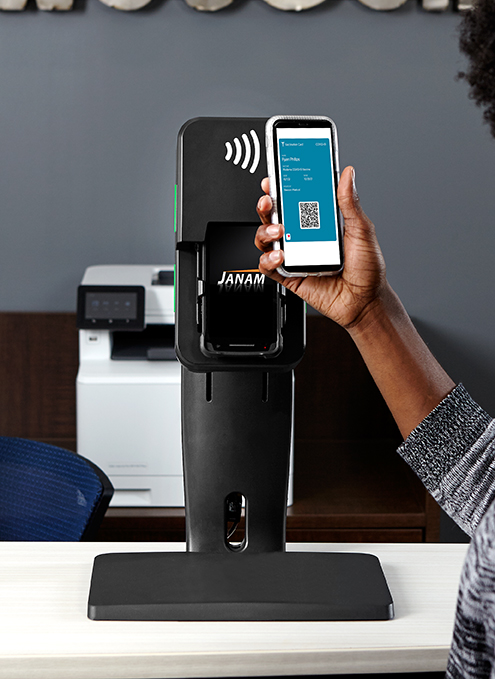

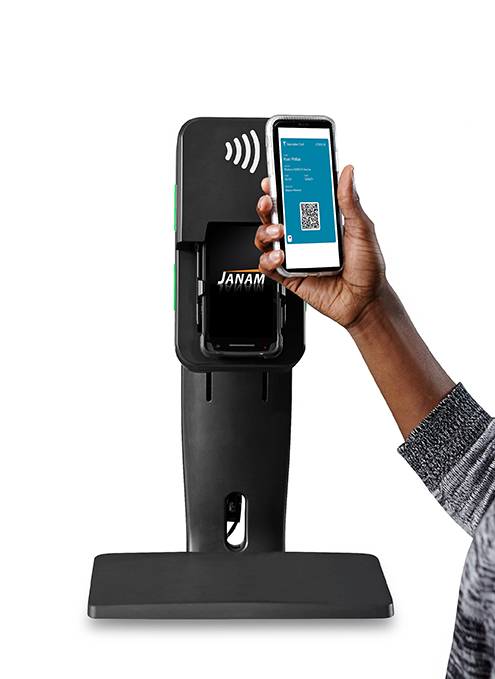

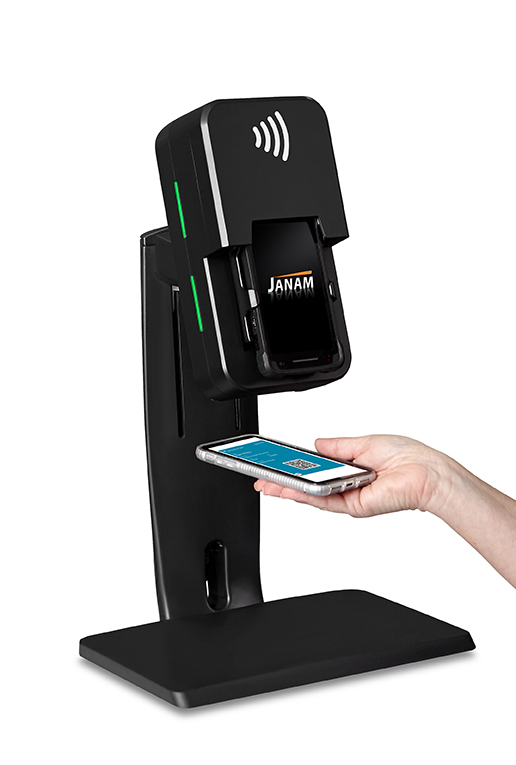

Equipped with state-of-the-art data capture technology, GT1 easily and affordably converts a new or existing Janam XT3 rugged touch computer into a contactless, self-credentialing solution to enable businesses to share information and interact with customers in more meaningful ways. In addition to robust scanning of barcodes and QR codes on both paper credentials and smartphone screens, GT1 supports the most advanced tap-and-go NFC features of Apple Wallet and Google Pay, enabling error-free verification of credentials in just seconds. Support for automatic pass selection eliminates the need for users to unlock their phones and scroll through their digital wallet to find the right pass. Users simply tap their iPhone or Android-powered smartphone on the surface of GT1 and integrated proximity-based NFC technology reads the pass, enabling frictionless entry for hundreds of people in minutes.

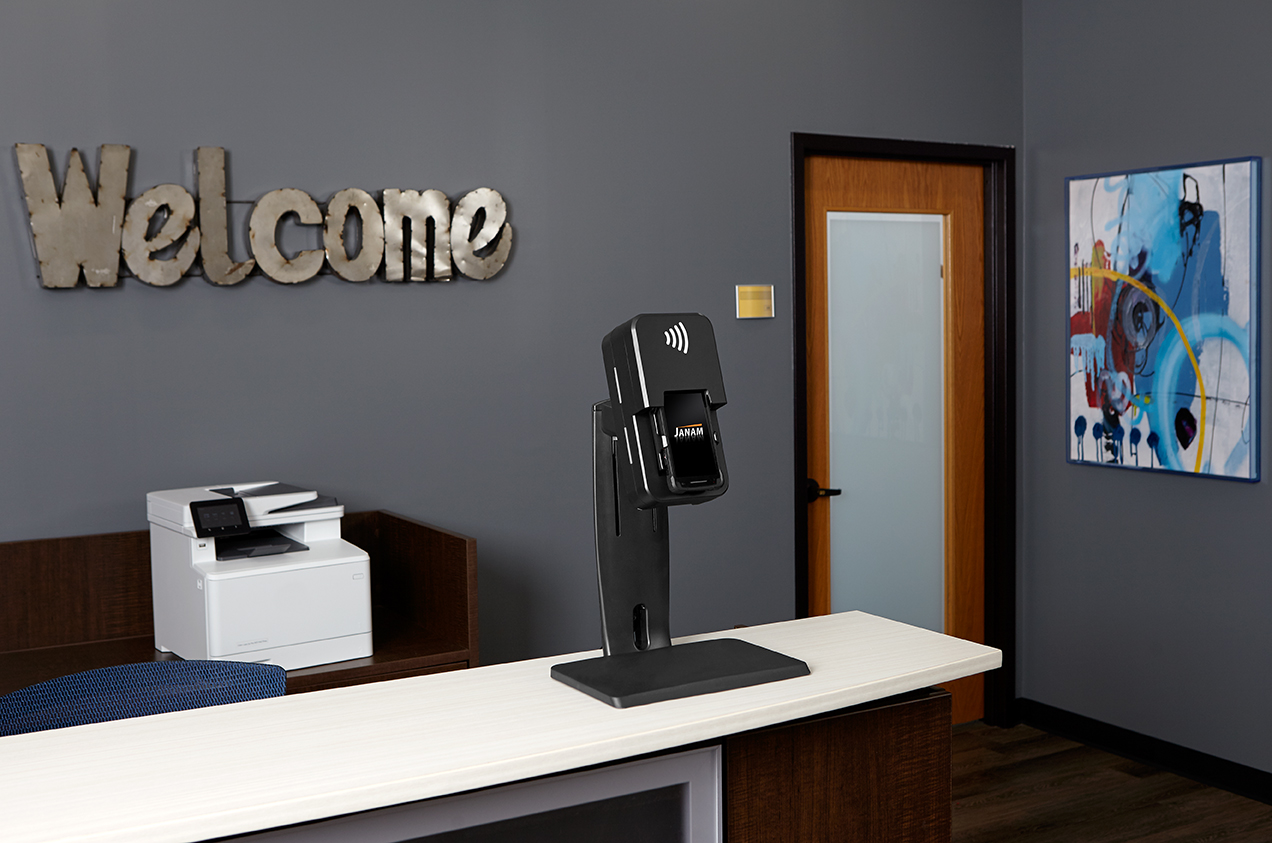

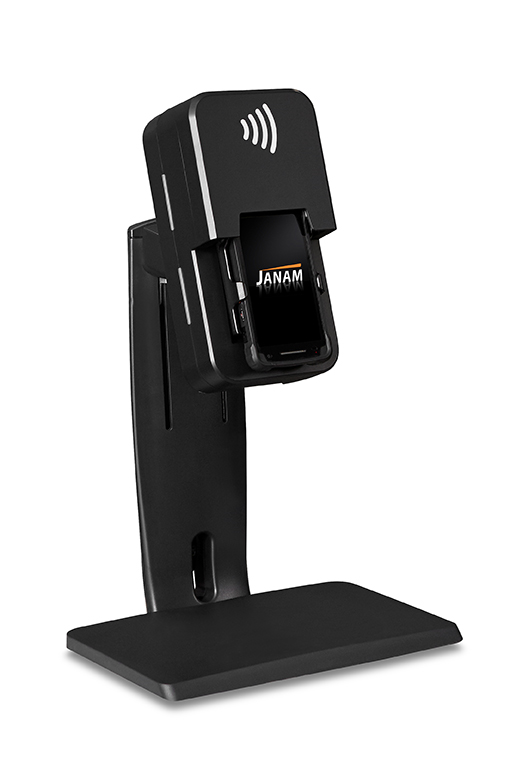

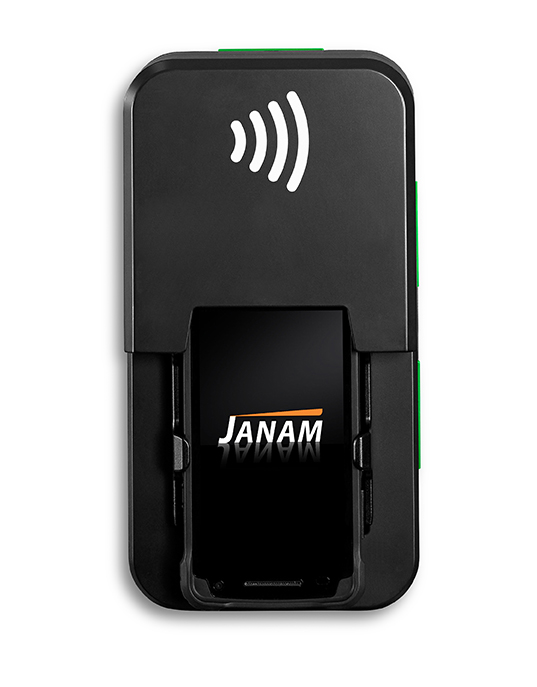

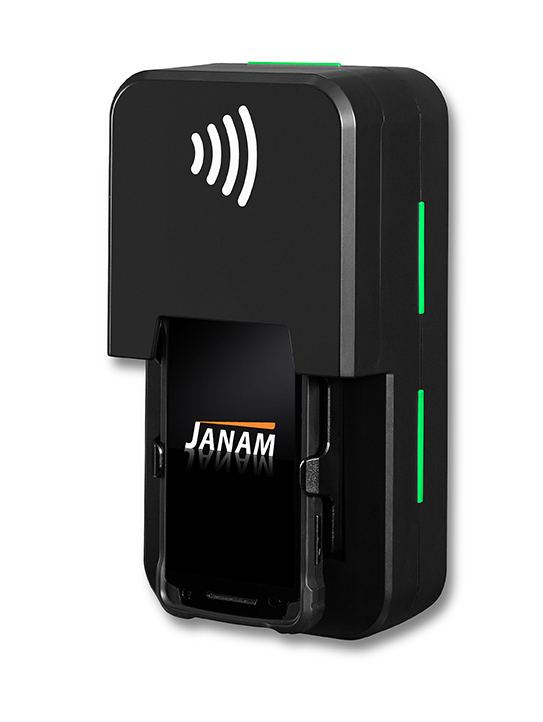

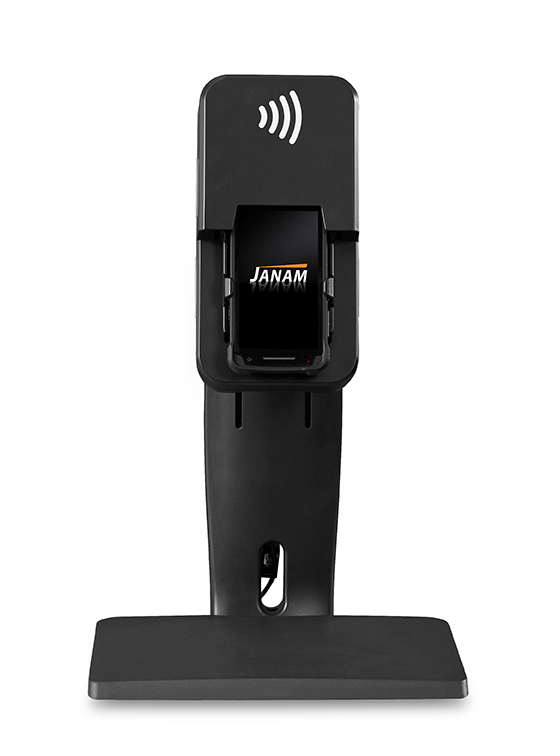

Available in counter-top and wall-mounted formats, GT1 effortlessly moves individuals through the identification process – eliminating the challenges often associated with employee ID and healthcare verification, retail loyalty programs, age verification, ticketing, boarding and check-in. It also provides businesses of all types and sizes the ability to verify vaccination status or COVID-19 test results to speed entry and help to protect employees and guests.


Specifications

TECHNICAL



Operating System

Android 9 (Pie) with Google Mobile Services (GMS); OS upgradeable; Android Enterprise Recommended

Processor

2.2GHz Qualcomm Snapdragon™ octa-core

Memory

4GB/64GB (3GB/32GB optional)

Expansion User-accessible microSD card slot up to 32GB SDHC and up to 512GB SDXC,1 micro SIM (WWAN model only) and 2 micro SAM slots

PHYSICAL



Dimensions 5.1” L x 3.5” W x 9.75” D / 129.5mm L  x 89mm W  x 248mm D
Weight 1.75lbs / .79kg (Head Unit only)
2.35lbs / 1.06kg (with XT3)
 I/O  I/O on GT1 includes power input
jacks for wall adapter and battery, ethernet port,
and USB port

Display

5 inch HD (1280x720), IPS, Daylight readable (500 nits), Wide viewing angle, Corning Gorilla Glass

Touch Panel

Multi-touch capacitive touch screen

ENVIRONMENTAL



Operating Temperature

 -4º to 140ºF / -20°C to 60°C
Storage Temperature  -13º to 158º F / -25º to 70º C

Humidity

Non-condensing, 95%

Water & Dust

IP52

Electro Static Discharge (ESD)

+/- 15kV air; +/- 8kV contact

INTERFACE FEATURES



Audio

3.5mm headset jack; speaker; dual-microphone with noise cancellation and push-to-talk (PTT) support (via XT3)

Alerts

Audio; LED indicators

Connectors

USB-C; Pogo Pin industrial connector (via XT3)

LED Indicators

Dual-color

Motion Sensor Accelerometer; Light Sensor; Proximity Sensor; Gyroscope; Digital Compass
External Buttons 9 programmable keys

DATA CAPTURE



Imager

Honeywell N6703 1D/2D imager
Camera 13MP color rear-facing autofocus camera with user-controllable LED flash and 8MP front-facing camera
RFID/NFC Reads NFC Forum Tag 1 to 5, ISO14443 Type A, ISO14443 Type B, ISO15693,MIFARE® 1k/4k/Plus/UltraLight/ DESFire, Sony FeliCa on the 13.56 MHz range, Support for Apple Wallet and Google Pay NFC protocols

WIRELESS
COMMUNICATION



WWAN

EDGE/GPRS/GSM: 900/1800/850/1900 WCDMA: B1/2/4/5/6/8/19 LTE FDD: B1/2/3/4/5/7/8/12/13/14/17/19/25/26/20/28 LTE TDD: B38/B39/B40/41


WLAN

802.11a/b/g/n/ac/d/h/i/k/r/v fast roaming, 2x2 MU-MIMO technology

Security IEEE 802.11n; WEP / WPA / WPA2 / WEP, RC4 Algorithm; TKIP, RC4 Algorith; AES, Rijndael Algorithm; PEAP/MS-CHAPv2, EAP-TLS; EAP- TTLS; PEAP-GTC; LEAP
WPAN Bluetooth 5.0 (BLE)
GPS GPS with support for GLONASS, Galileo and Beidou

SAFETY/REGULATORY



Safety

IEC 60950-1, EMC, RF, SAR, LED, Laser

Radio

FCC, IC, ICEC, CE

                                           Specifications Subject to Change.
