TECHNICAL
|
|
Operating System
|
Android 9 or Android 11 with Google Mobile Services (GMS), OS upgradeable
|
Processor
|
2.2GHz Qualcomm Snapdragon™ 660 octa-core |
Memory
|
4GB/64GB, User-accessible microSD card slot with SDXC support
|

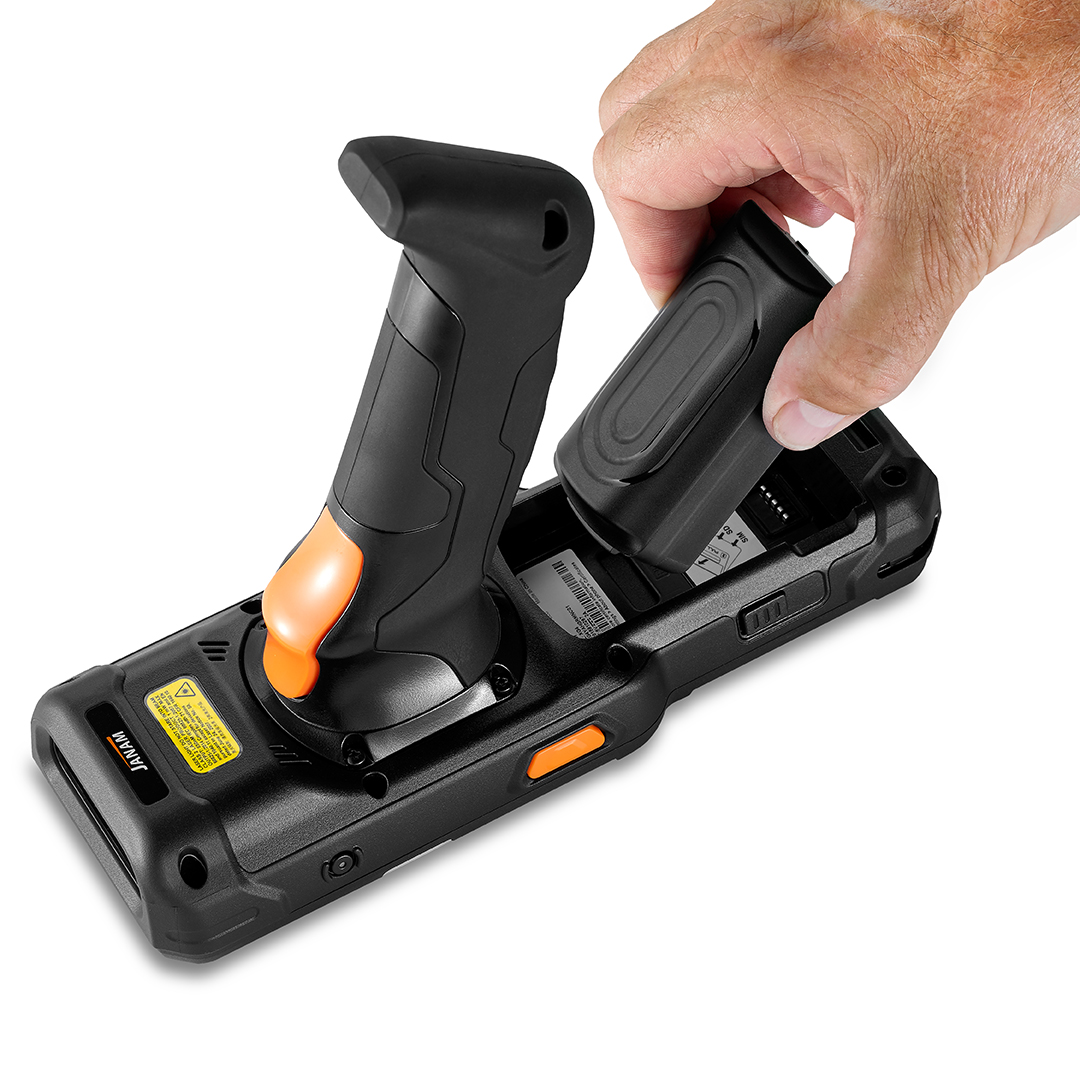

Power
|

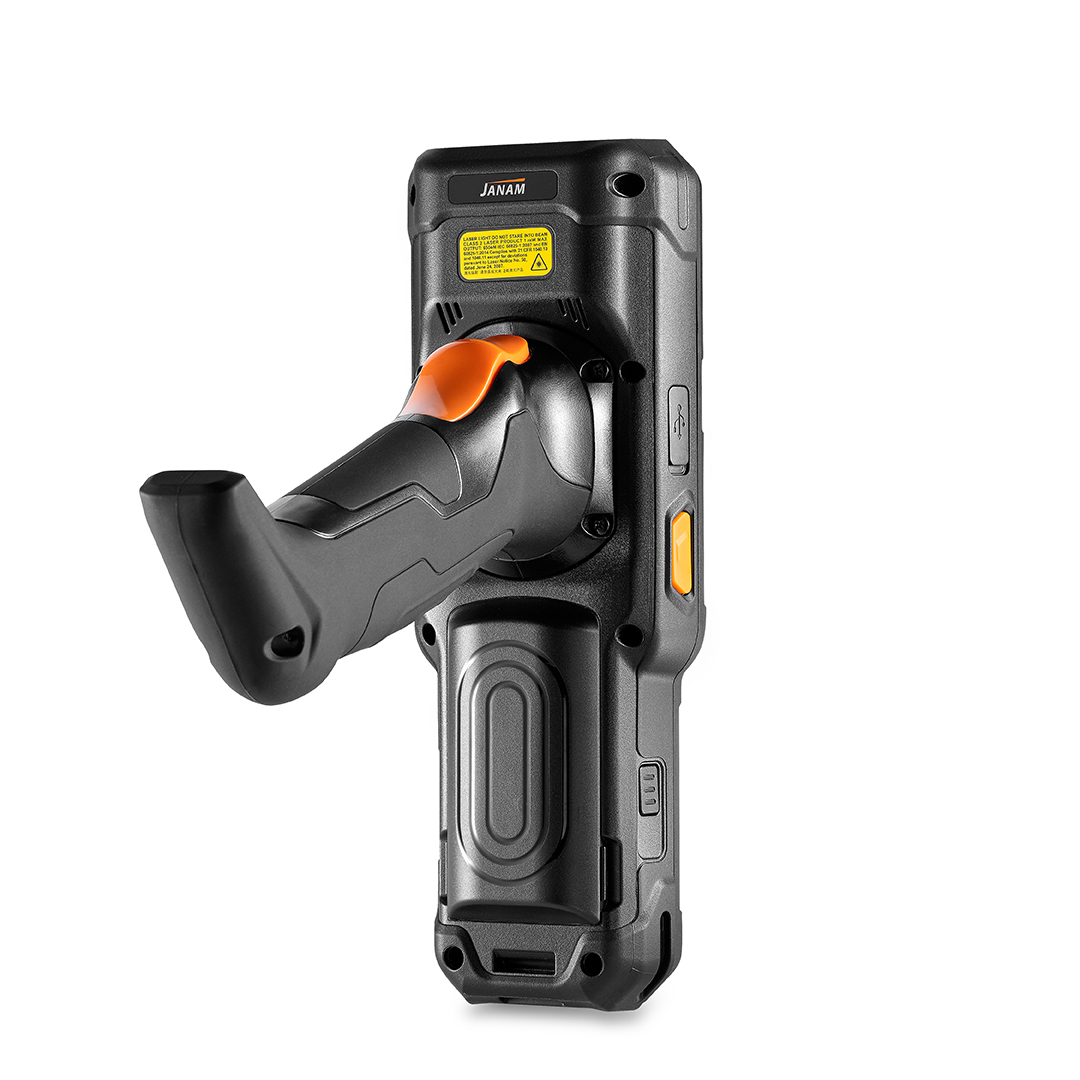

5700mAh 3.7v rechargeable Li-ion battery
|
PHYSICAL
|
|
Dimensions
|
8.46” L x 3.04” W x .7.3” D / 214.94mm L
x 77.26mm W x 185.61mm D
|
Weight
|
18.55oz / 526g including battery |

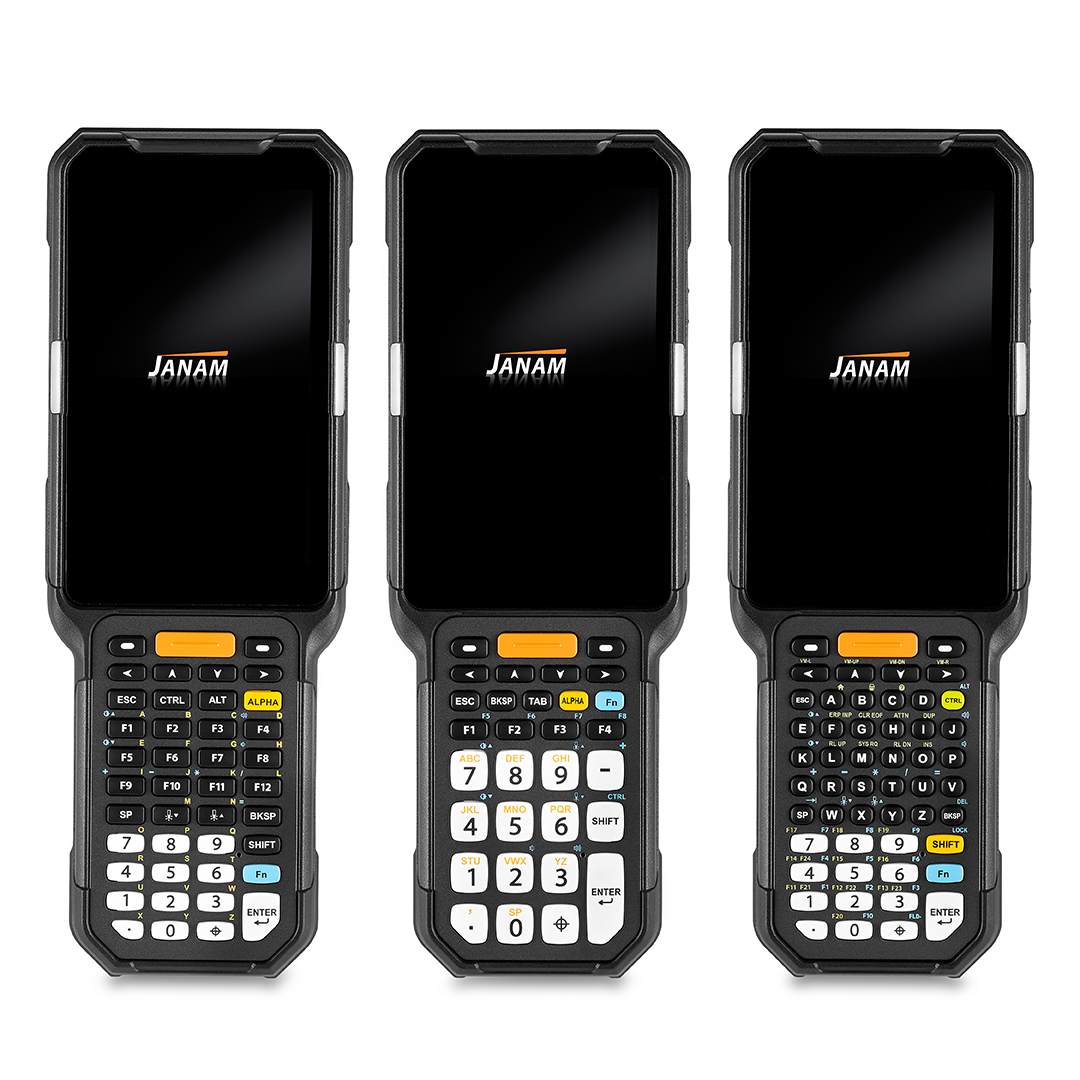

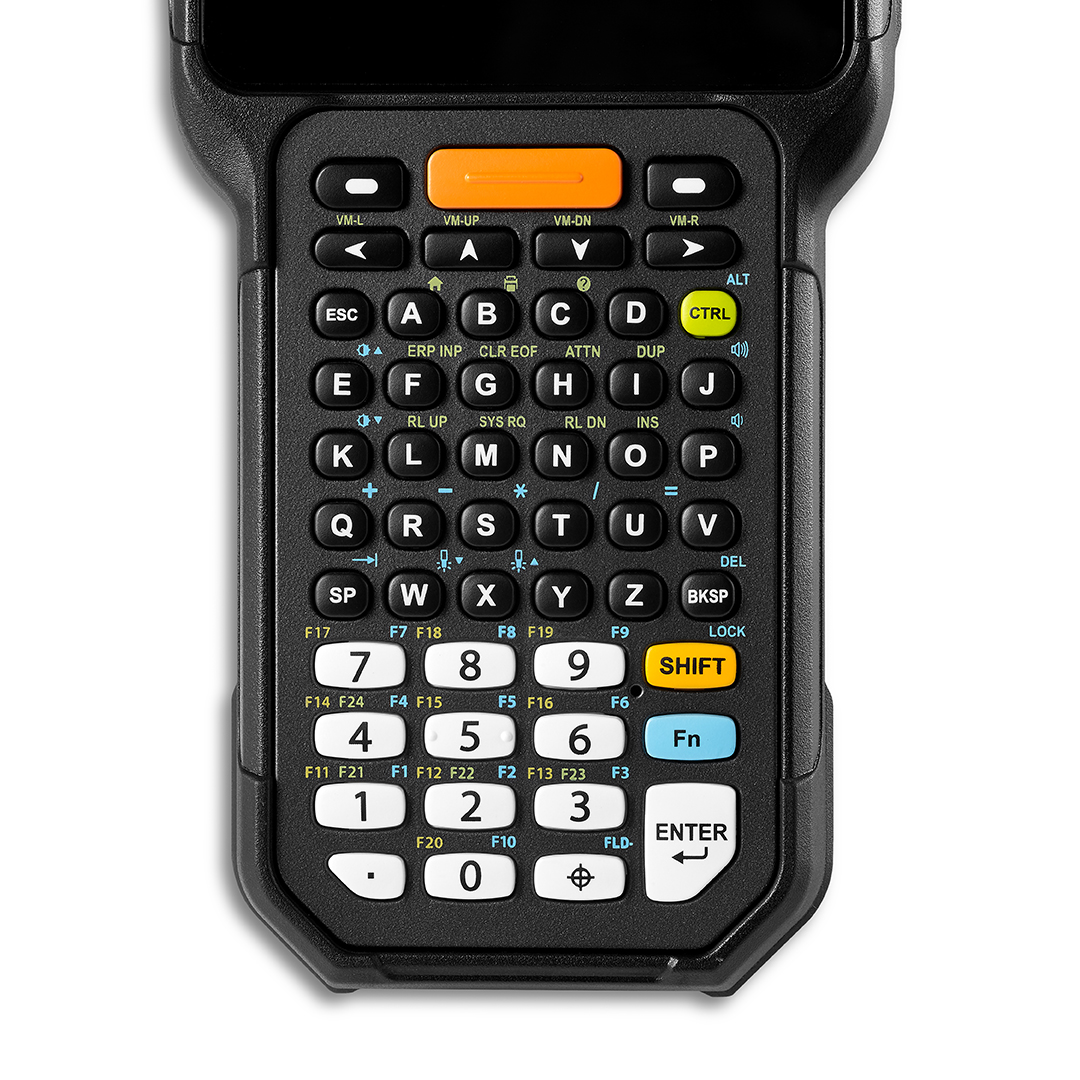

Keypad |

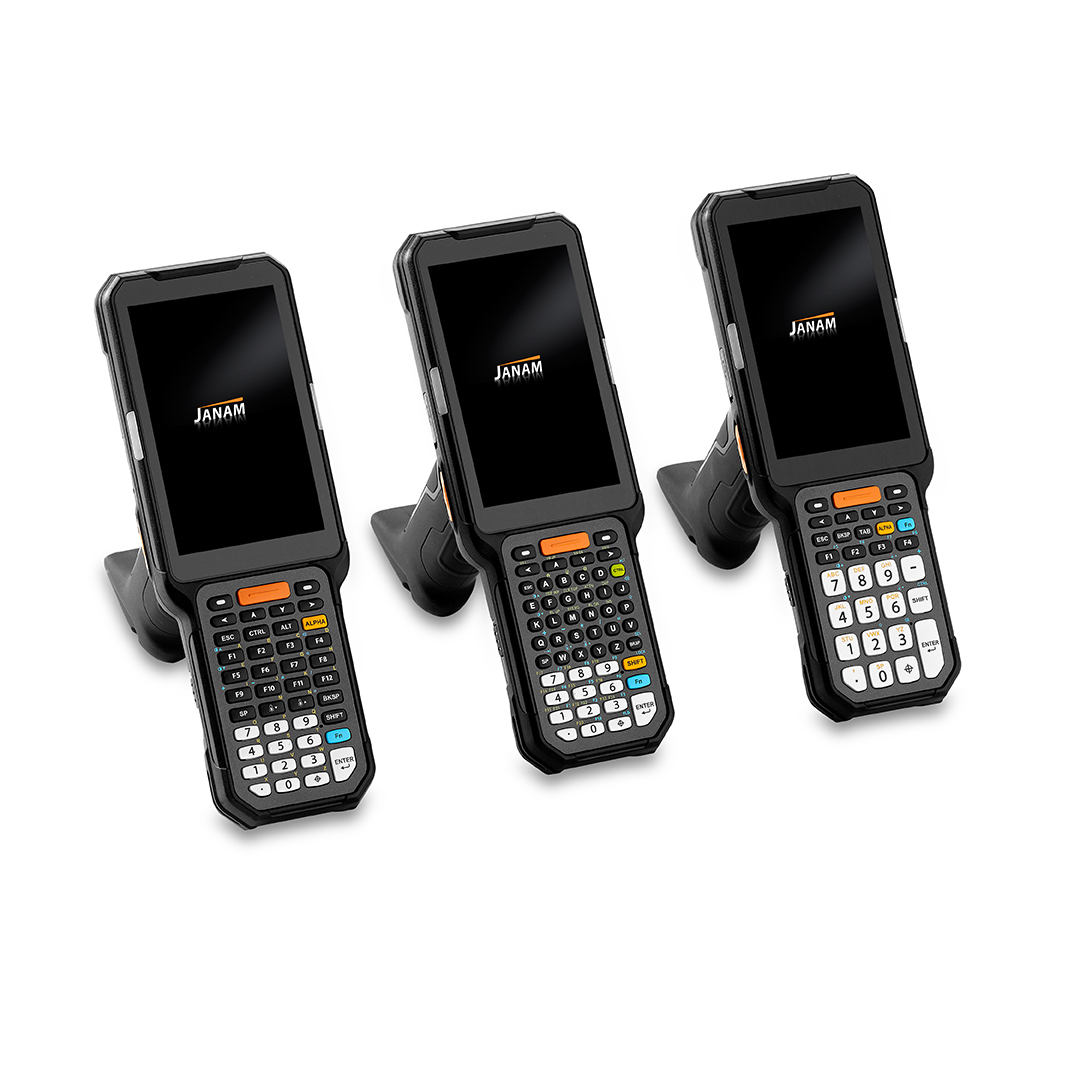

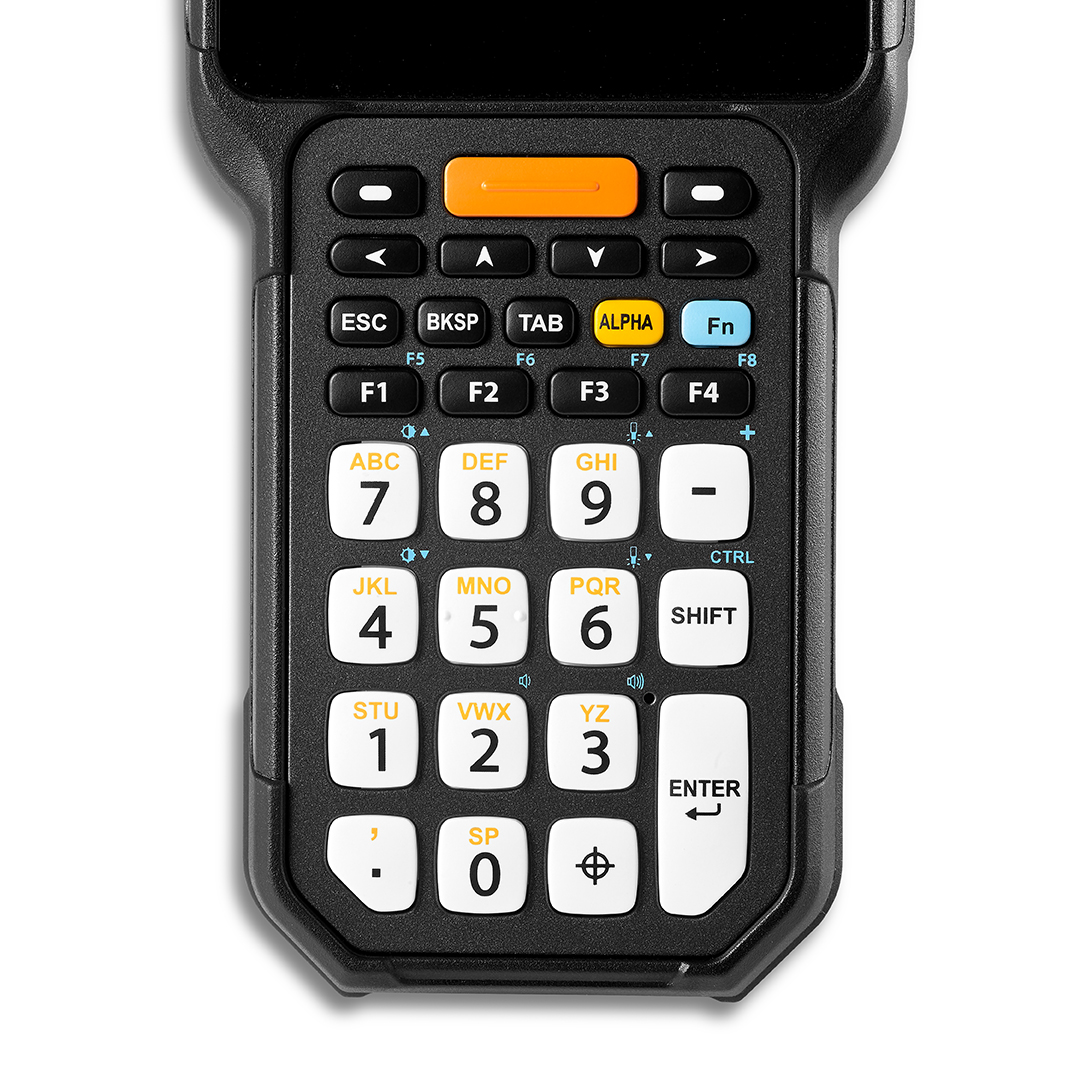

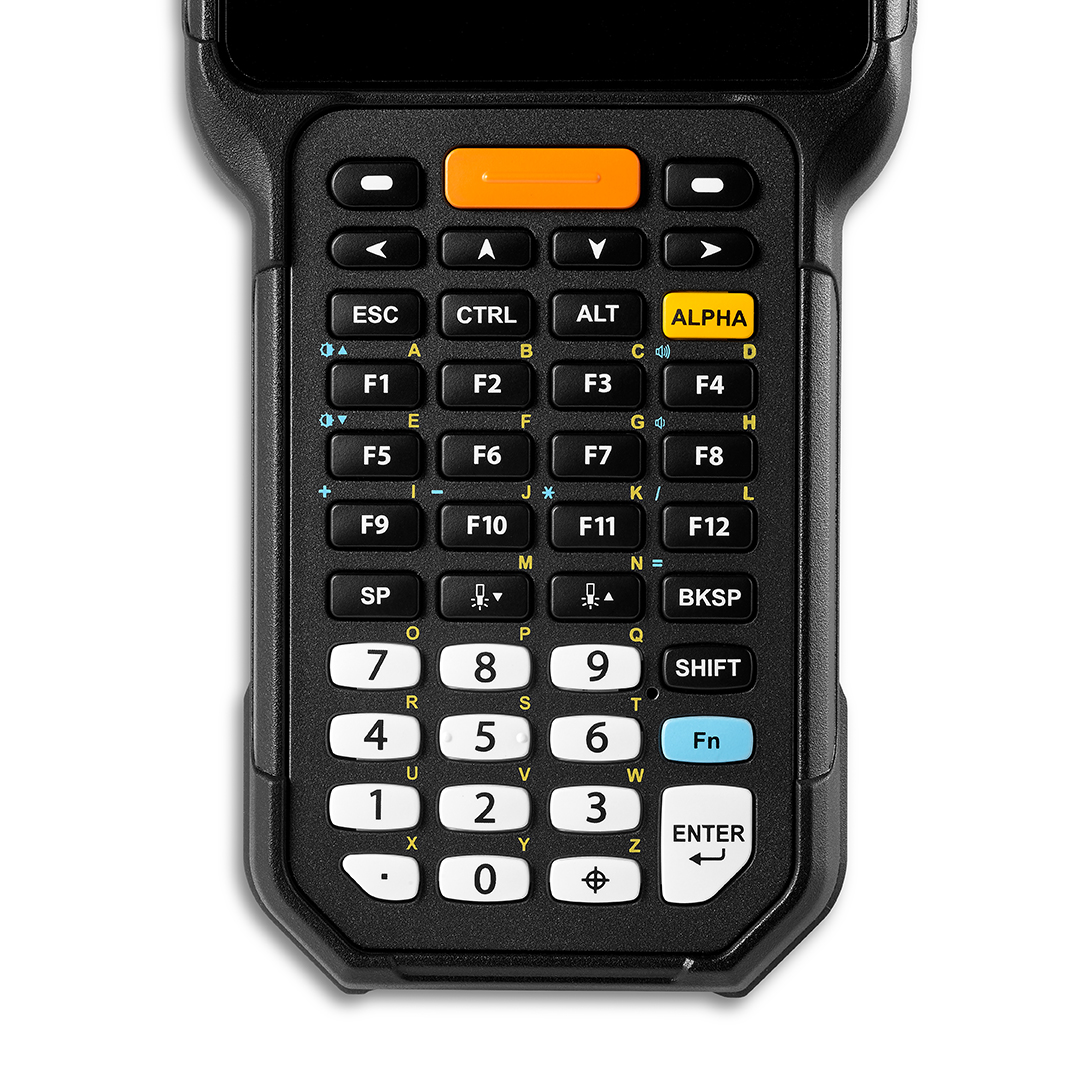

31-Key Numeric, 42-Key Function Numeric or 52-Key Alpha-Numeric
|
Display
|
4.3 inch IPS (480x800) WVGA, Daylight
readable (500+ nits), Corning Gorilla Glass 3
|
Touch Panel
|
Multi-touch capacitive touch screen
|
ENVIRONMENTAL
|
|
Operating Temperature
|
-4º to 140º F / -20º to 60º C
|
Storage Temperature
|
-40º to 158º F / -40º to 70º C
|
Humidity
|
Non-condensing, 95%
|
Drop
|
Multiple 7ft/2.4m drops to concrete at operating temperature, Multiple 6.5ft/2m drops to concrete at ambient temperature per MIL-STD-810G |
Water & Dust
|
IP65
|
Electro Static Discharge (ESD)
|
+/- 15kV air; +/- 8kV contact
|
INTERFACE FEATURES
|
|
Audio
|
Microphone, Speaker
|
Alerts
|
Vibration; LED indicators
|
Connectors
|
USB Type C/OTG
|
LED Indicators
|
Dual-color LED indicators
|
Motion Sensor |
Accelerometer, Proximity sensor, Ambient Light sensor |
DATA CAPTURE
|
|

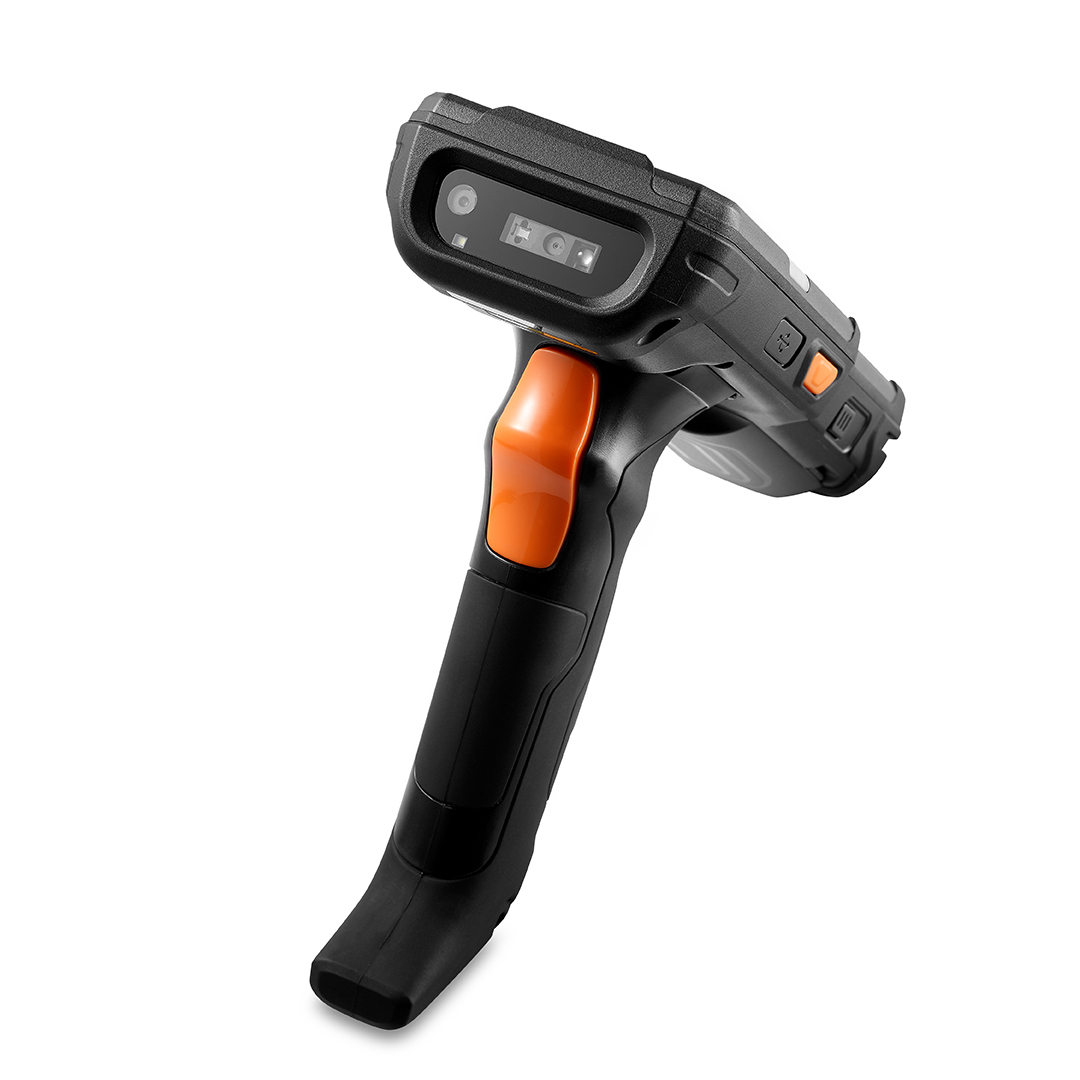

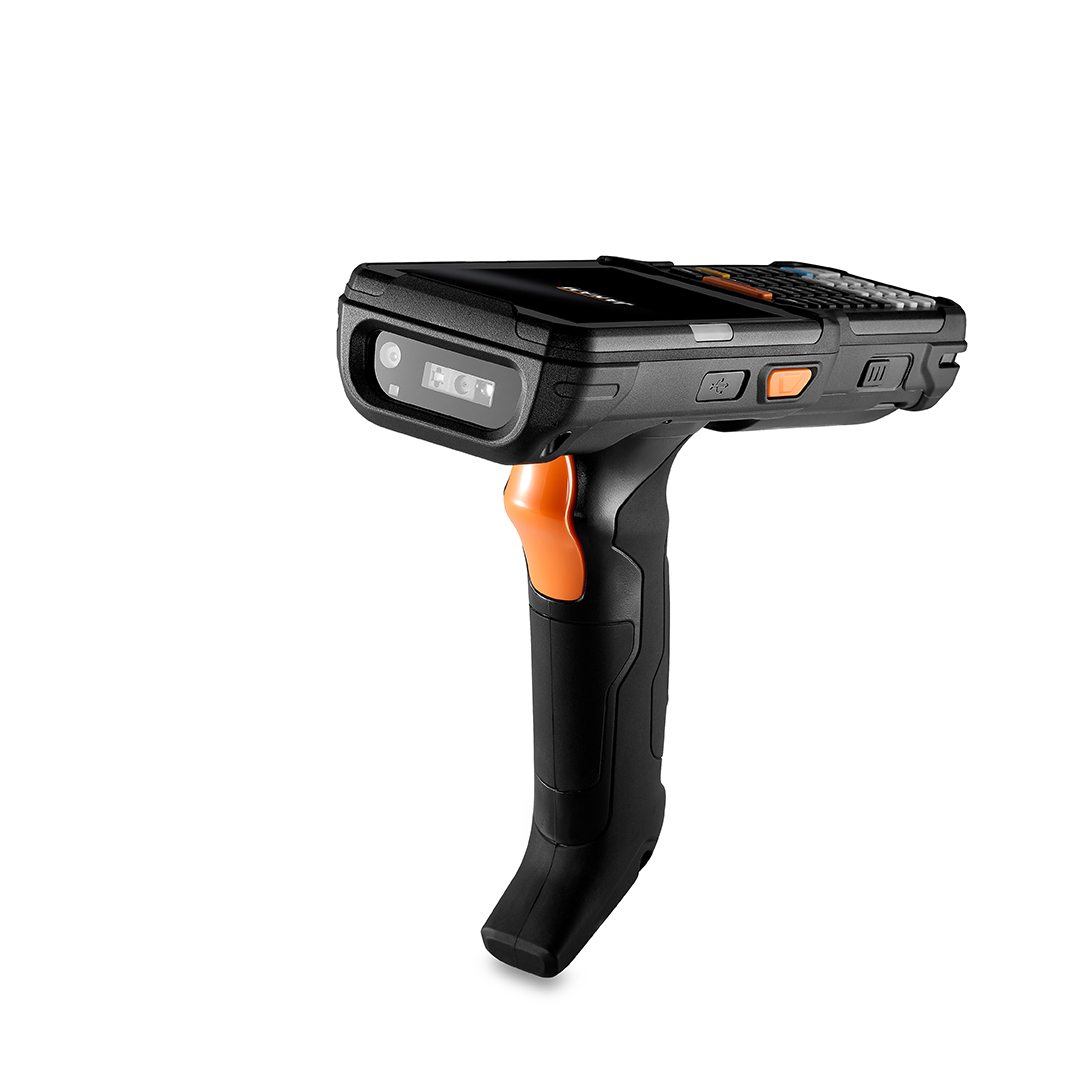

Imager
|
Honeywell N6703 1D/2D Imager or Honeywell EX30 near/far imager |
Camera |
13MP color top-facing autofocus camera |
NETWORK COMMUNICATION
|
|
WWAN |
EDGE/GPRS/GSM: 900/1800/850/1900
WCDMA: B1/2/4/5/6/8/19
LTE FDD: B1/2/3/4/5/7/8/12/13/19/20/25/26/28
LTE TDD: B38/B40/41 |
WLAN
|
802.11a/b/g/n/ac/d/h/i/k/r/v, IPv4, IPv6, 2x2 MU-MIMO |
Fast Roam |
CCKM, 802.11r |
Security
|
WEP (40 or 104bit), WPA/WPA2 Personal (TKIP, AES),
WPA/WPA2 Enterprise (TKIP/AES), PEAP (MSCHAPv2, GTC),TLS, TTLS (PAP, MSCHAP, MSCHAPv2, GTC), PWD, SIM, AKA, AKA’, LEAP, CCX v4 supported, Wi-Fi Direct and Hot spot support
|
WPAN
|
Bluetooth v5.0 (BLE)
|
ACCESSORIES
|
Single-slot cradle kit (Ethernet; USB; Charging), Four-slot charging cradle kit, Four-slot battery charging kit, Holster, Heated holster, Forklift cradle
|
SAFETY/REGULATORY
|
|
Certifications
|
CE, CB, RCM, KC, IC, FCC, IFITEL, NOM, NBTC, CU, FAC, NRCan, DOE, CEC
|
Environment
|
UL Listing (US and Canada) Class I Div 2, Groups A, B, C, D; RoHS III and WEEE compliant
|
